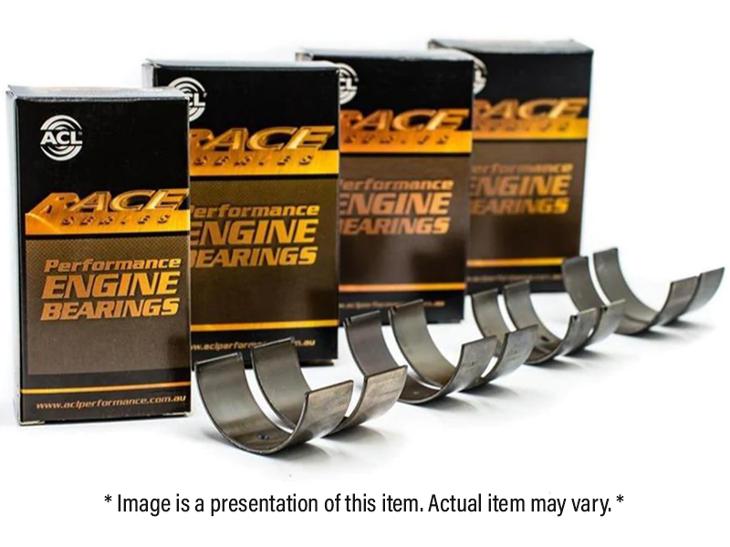

ACL Main Bearing GM LS Std HX, Set
5M7298HX-STD
OVERVIEW
- High performance Trimetal engine bearings
- Designed to withstand higher RPM conditions
- High strength overlay plate with reduced thickness for improved fatigue properties
Specifications
Size | STD |
Tunnel [mm] | 69.873/69.887 |
Shaft [mm] | 64.993/65.007 |
Max. Wall | 2.417 |
Max. Length | 20.45 |
Half type | Upper & lower |
"270° groove. 0.001"" extra oil clearance on STD journal. | |
Weight | 0.47 |
