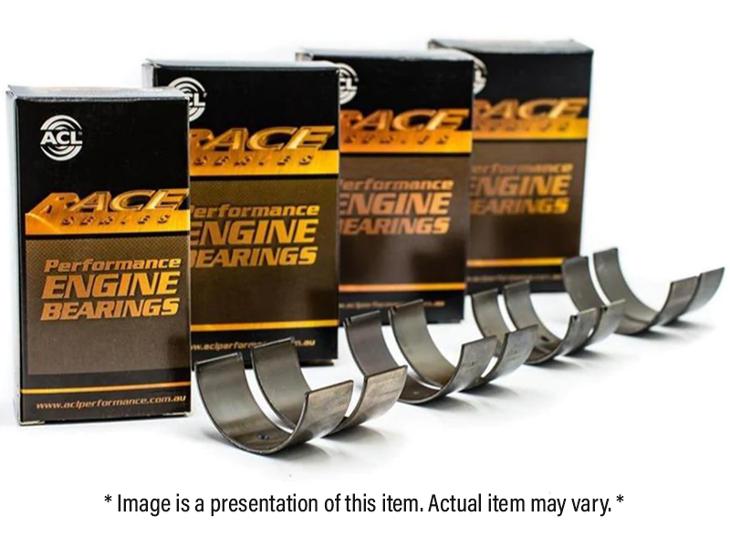

ACL Main Bearing GM LS .010, Set
5M7298H-10
OVERVIEW
- High performance Trimetal engine bearings
- Designed to withstand higher RPM conditions
- High strength overlay plate with reduced thickness for improved fatigue properties
Specifications
Sizes | STD, 01, 10, 20 |
Tunnel [mm] | 69.873/69.887 |
Shaft [mm] | 64.993/65.007 |
Max. Wall | 2.43 |
Max. Length | 20.45 |
Half type | Upper & lower |
Note | 270° Groove. |
Weight | 0.49 |
