OVERVIEW

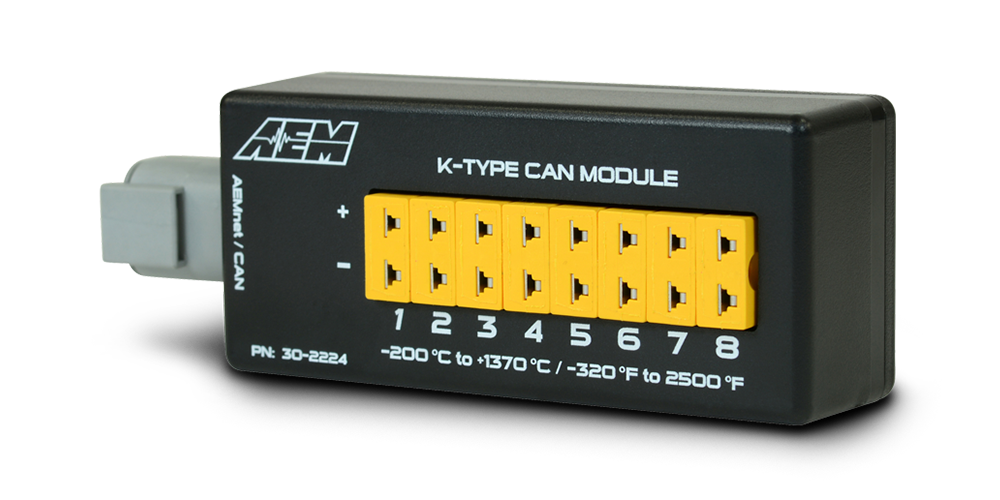

AEM Channel K-Type Thermocouple EGT/Temperature Sensor Module

Features:

• Includes 8 K-type thermocouple inputs to accept common K-type thermocouple sensors (sensors sold separately)
• Uses common miniature thermocouple sockets
• Daisy-chain two modules together for up to 16 temp inputs through a single plug!
• Outputs all channels via configurable CAN bus via one-plug connection (DTM-style Connection Cables sold separately in various lengths)
• Pre-configured AEMnet CAN bus for plug & play connection to CD Digital Dashes, Infinity ECUs, and AQ-1 (not compatible with Series 2 ECU at this time)
• Cold junction compensated for lab-grade accuracy (+/- 0.15% full scale)
• Measures temperatures from -200 to 1372 degC (-328 to 2501 degF)
• Temperature resolution 0.1 degC (0.18 degF)
• Integrated open circuit/fault detection
• Includes 8-Channel K-Type EGT CAN Module, 4-Pin DTM-style Connector Plug, instructions and Velcro for in-vehicle mounting
