Product Description

GRIND# XA228/375-XA242/375-18+4

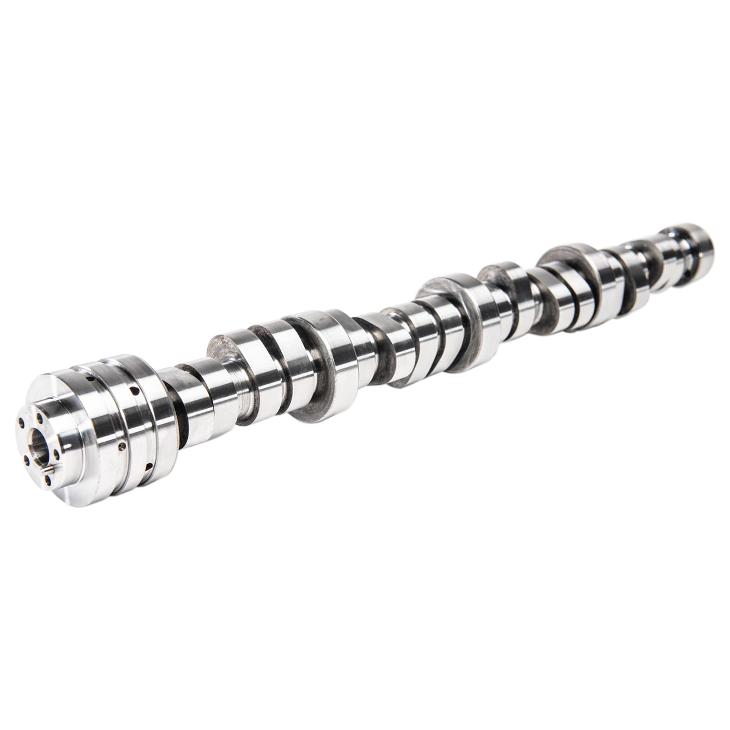

Hydraulic Roller Camshaft

Performance

Duration at .050": 228/242

118 Lobe Separation Angle

114 Intake Centerline

Lift with 1.65 Rocker Arm Ratio: .618"/.618"

Recommended Displacement: 5.7 to 6.4 Liter Engines

Recommended Compression Ratio: 8.5.0-10.5:1

Recommended Headers: Stock Manifolds to 1 3/4"

Recommended Stall Converter: stock to 3500

Recommended Rear Axle Ratio: Stock to 3.92:1

The Gen 3 Hemi 228/242 PD Supercharger Camshaft is designed for performance in cars using late 5.7 and 6.4 liter VVT-style Gen 3 Hemi engines. The 228/242 PD will have a performance idle and improved power through the midrange and upper RPM. Additional performance gains can be realized when used with headers, an increased stall speed torque converter, free-flowing exhaust and intake systems.

The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.
