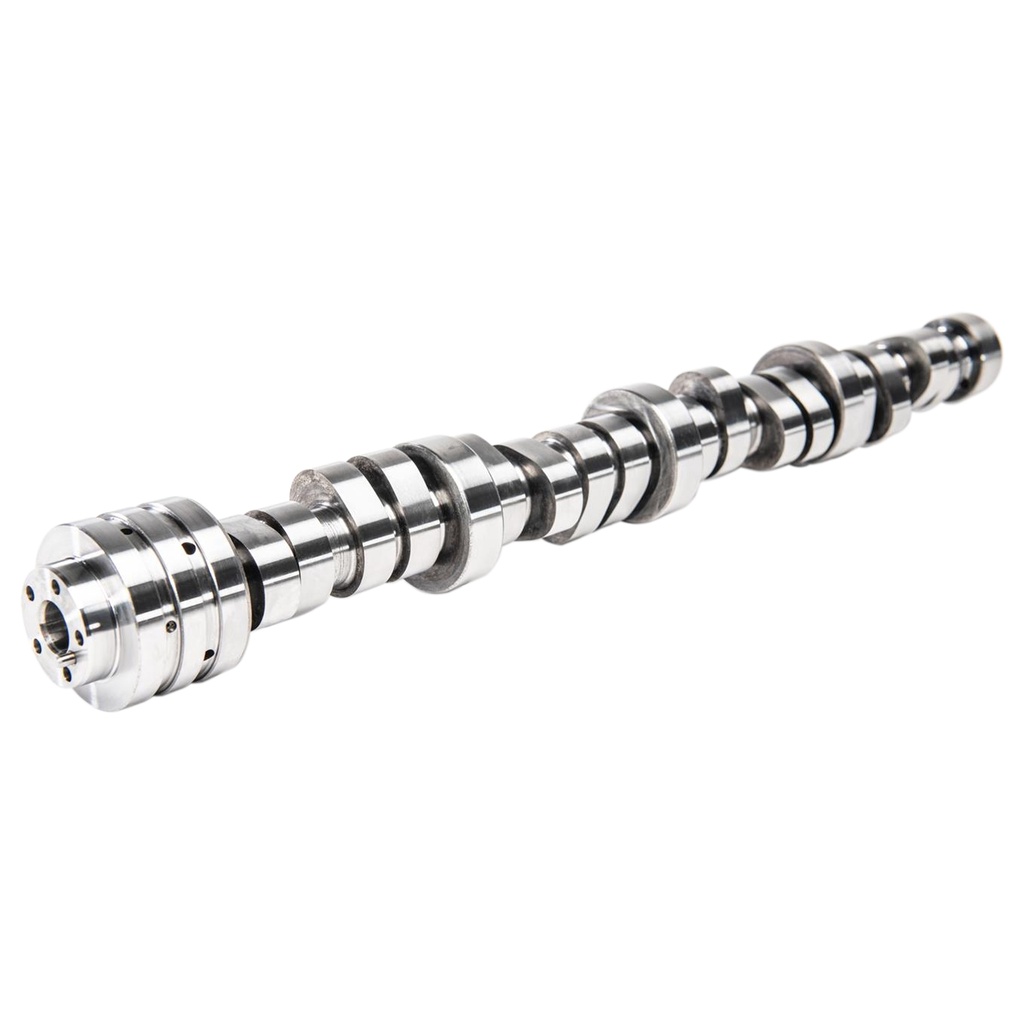

Cam Motion Race Day LS LLR Camshaft (243/257-108.5+3.5) for "Single Plane" Rectangle Port
03-08-0098
Product Description
Grind # LL243/405-LL257/395-08.5+3.5
Duration at .050: 243/257
108.5 Lobe Center Angle with a 105 Degree Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .688"/.671"
Recommended Displacement: 6.0-6.2 Liter Engines
Cylinder Heads: Rectangle Port
Recommended Compression Ratio: 11.75-13:1
Recommended Headers: 1 3/4" - 1 7/8"
Recommended Stall Converter: 4500-5500
Recommended Rear Axle Ratio: 4.11-4.88
*Specifically designed for single plane and other short runner intake manifolds.
This Race Day LLR "Single Plane" - Rectangle Port camshaft is designed for Drag Racing applications in cars using 6.0-6.2 liter LS engines equipped with rectangle port, LS3/L92 style heads and single plane intake manifolds like the Victor, High Ram, Mid Ram and GMPP style intake manifolds.
Ideal for the enthusiast who is looking to get great results while maintaining a modest RPM range. This camshaft is intended to be used with high compression and the proper racing fuel for best results. The base version of this camshaft is designed to work with adjustable rocker arms and quality performance solid lifters. This camshaft will have a rough, racecar idle. This camshaft requires pistons with valve reliefs for proper piston-to-valve clearance. This camshaft requires intake and exhaust modifications for maximum flow. Headers, open or racing exhaust, racing intake systems, properly suited racing torque converter and optimal rear axle ratios to achieve maximum performance.
This Race Day cam is designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in our top of the line 8620 camshaft cores.
