Product Description

Grind # XA244/380-XA256/370-117+4

Racing

Duration at .050: 244/256

117 Lobe Center Angle with a 113 Degree Intake Centerline

Lift with 1.7 Rocker Arm Ratio: .646"/.629"

Recommended Displacement: 5.7-6.2 liter & 400" Engines

Recommended Compression Ratio: 9:1-12:1

Recommended Headers: Racing Turbo Headers

Recommended Stall Converter: 3500+ RPM

Recommended Rear Axle Ratio: 3.42 +

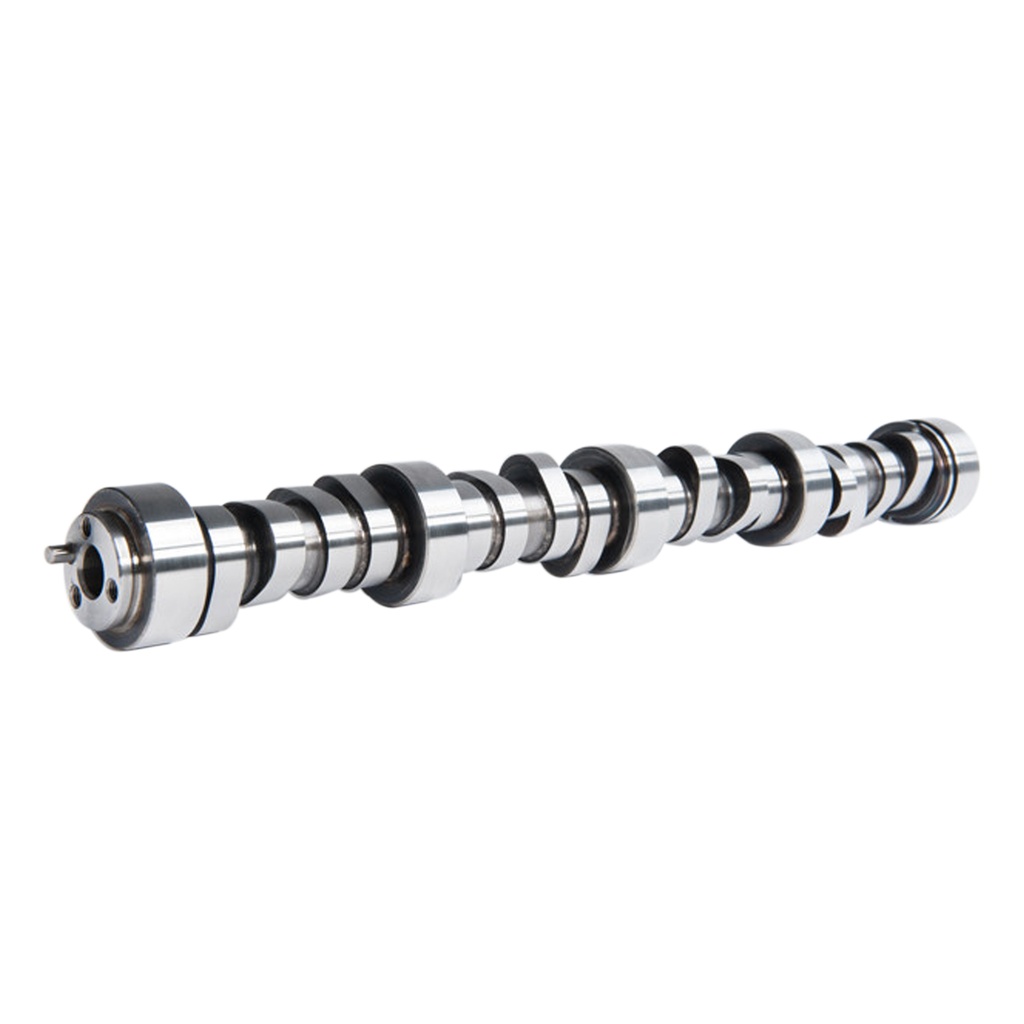

The LS TT 244/256 Turbocharger LS Camshaft is a racing camshaft for vehicles using 5.7-6.2 liter & 400" LS engines equipped with an appropriately sized turbocharger(s) targeting moderate to aggressive boost and power levels.

The LS TT 244/256 Turbocharger Camshaft will have a racecar idle with a heavy lope and strong high RPM power. This camshaft is a great choice for racing in a properly designed combination. This camshaft requires free flowing exhaust, optimum high stall speed torque converter and optimum final drive gearing. Valve spring and pushrod upgrade are required.

Our turbocharger series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150 and our top of the line 8620 camshaft cores.
