Product Description

Grind # XA244/365-XA258/355-117+5

Maximum Street - Street/Strip - Race

Duration at .050: 244/258

117 Lobe Center Angle with a 112 Degree Intake Centerline

Lift with 1.7 Rocker Arm Ratio: .621"/.604"

Recommended Displacement: 402-418 Cubic Inch Engines

Recommended Compression Ratio: 9.0:1-10.5:1

Recommended Headers: 1 7/8" - 2"

Recommended Stall Converter: 3800+ RPM

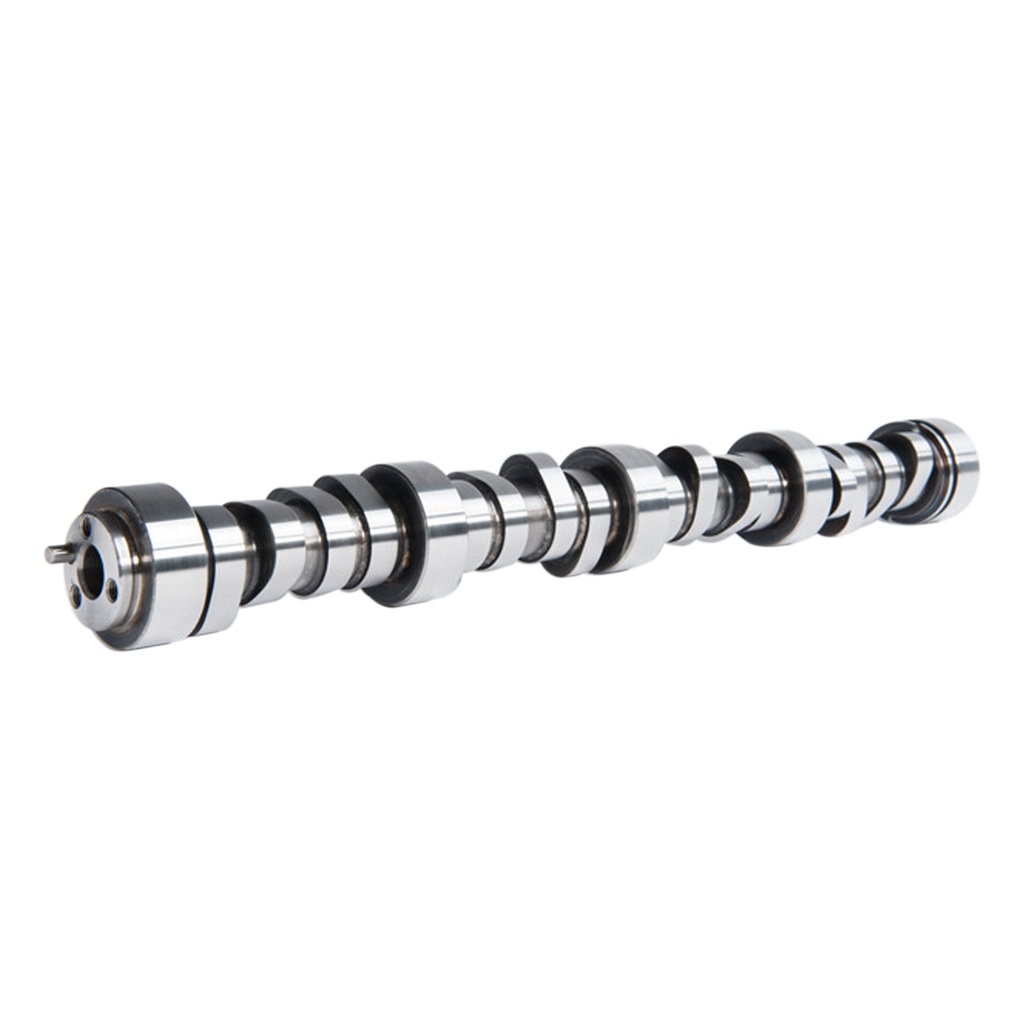

Recommended Rear Axle Ratio: 3.55 - 4.10 The CS 240/256 centrifugal supercharger LS camshaft is designed for max-street or race applications in vehicles using 5.7-6.2 liter LS engines equipped with centrifugal style superchargers.

The CS 244/258 Supercharger Camshaft will have a "lopey" or "choppy" idle and strong power through upper RPM range with emphasis on extended RPM capability. This camshaft will perform best in a vehicle properly setup for upper RPM performance with modifications including: headers, free flowing performance exhaust, increased stall speed torque converter and optimum final drive ratio. Valve spring and pushrod upgrade are required.

Our Supercharger series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores.
