Product Description

Grind # XA222/350-XA222/340-114+4

Moderate Street Performance

Duration at .050: 222/222

114 Lobe Center Angle with a 110 Degree Intake Centerline

Lift with 1.7 Rocker Arm Ratio: .595"/.578"

Recommended Displacement: 4.8-6.2 Liter Engines

Recommended Compression Ratio: 8.0:1-9.5:1

Recommended Headers: Stock Exhaust Manifolds to 1 3/4" headers

Recommended Stall Converter: 2500 - 3500  RPM

Recommended Rear Axle Ratio: Stock - 3.73

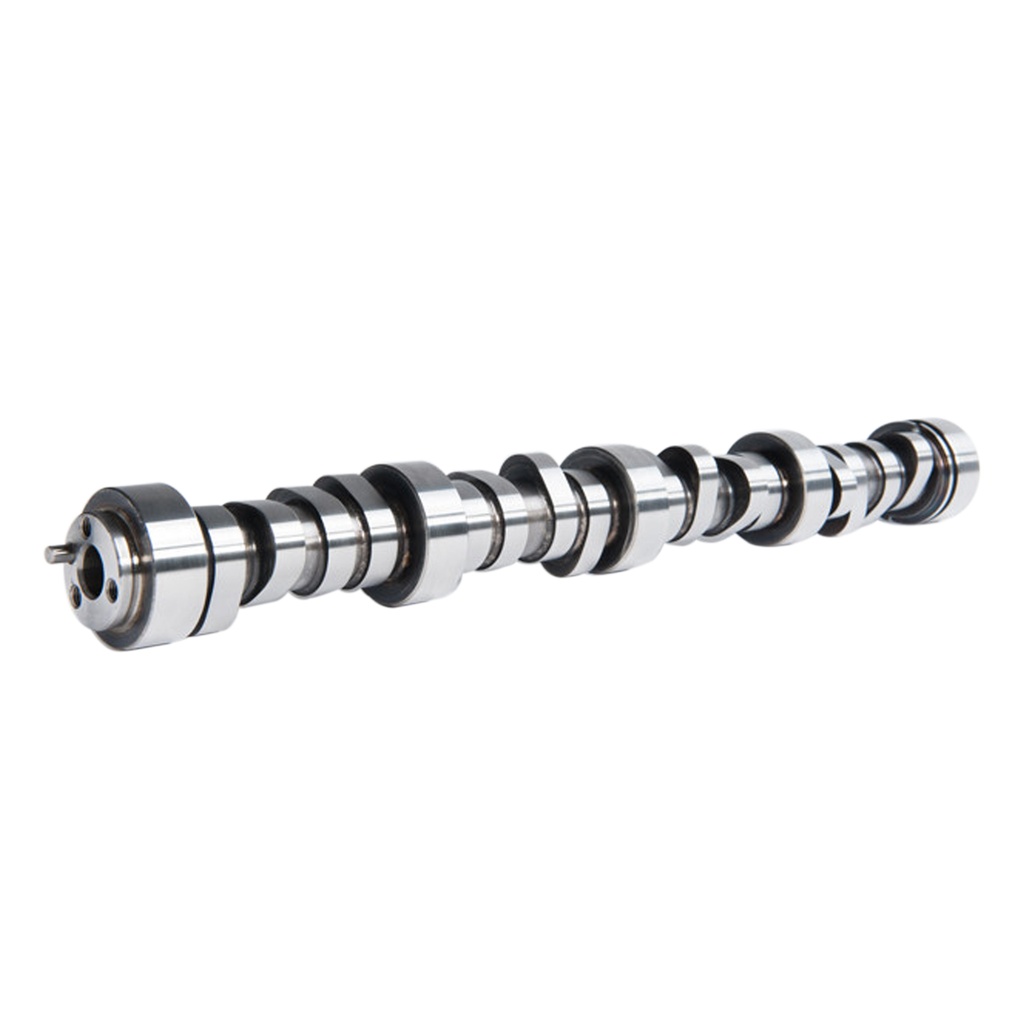

The TC 222/222 Turbocharger LS Camshaft is versatile and powerful street performance turbo camshaft for vehicles using 4.8-6.2 liter LS engines equipped with an appropriately sized turbocharger(s) targeting moderate boost and power levels.

The TC 222/222 Turbocharger Camshaft will have a mild performance idle and strong mid-range power and torque. This camshaft is a great choice for street performance providing strong power and quick spooling with excellent drivability. This camshaft requires valve spring and pushrod upgrades. Additional performance gains can be appreciated when used with a increased stall speed torque converter, free flowing exhaust and intake systems.

Our turbocharger series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores.
