Product Description

Grind # XA220/350-XA234/345-18+4

Mild Street Performance

Duration at .050: 220/234

118 Lobe Center Angle with a 114 Degree Intake Centerline

Lift with 1.7 Rocker Arm Ratio: .595"/.587"

Recommended Displacement: 5.3-6.2 Liter Engines

Recommended Compression Ratio: 8.5:1-10.0:1

Recommended Headers: 1 3/4" - 1 7/8"

Recommended Stall Converter: Stock - 3500 RPM

Recommended Rear Axle Ratio: Stock - 3.73

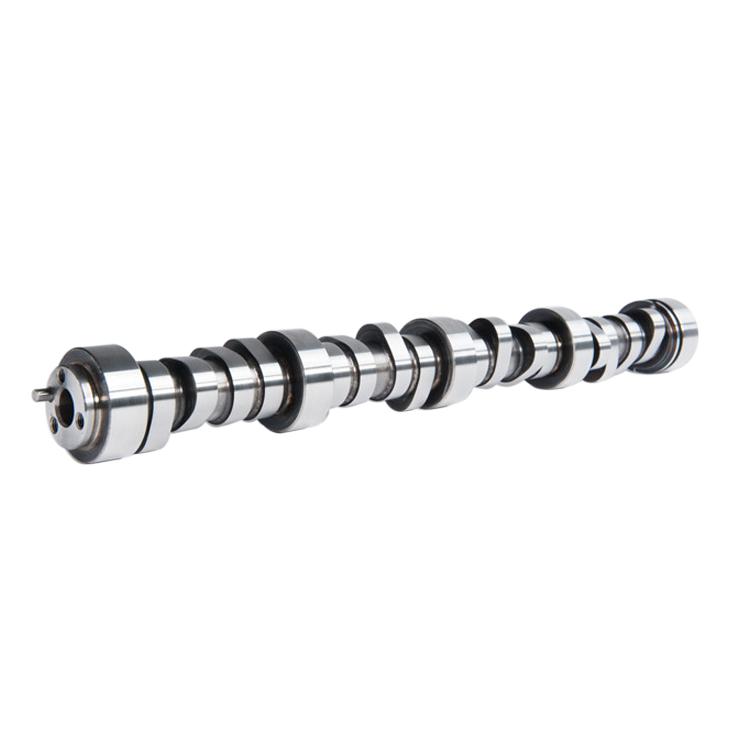

The PD 220/234 positive displacement supercharger LS camshaft is designed for street performance applications in vehicles using 5.3-6.2 liter LS engines equipped with positive-displacement style superchargers.

The PD 220/234 Supercharger Camshaft will have a slight performance idle and improved power throughout the RPM range with emphasis on mid-range power and torque. This camshaft can be used in a completely stock vehicle with just a valve spring and pushrod upgrade. Additional performance gains can be appreciated when used with headers, an increased stall speed torque converter, free flowing exhaust and intake systems.
