OVERVIEW

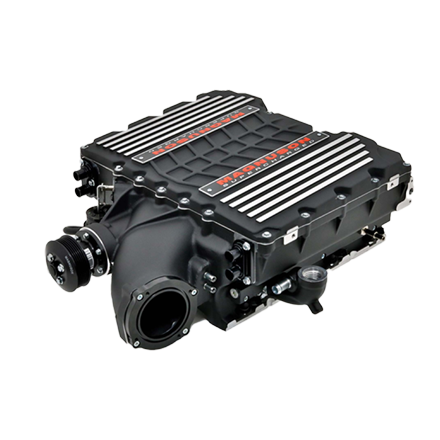

Take your 392 Rubicon to the next level with Magnuson’s TVS2650 Magnum Supercharger System! Built off our premium Magnum Performance Line, this system will give your engine a 26% boost in horsepower resulting in 603 hp and 562 ft-lbs at the crankshaft! The two massive charge air coolers provide maximum cooling capability for reliable, repeatable performance all day long on the street, off road or at the track!

At Magnuson, we only use the highest quality components in our supercharger kits. Everything you need to supercharge your 392 Rubicon is included, right down to detailed step-by-step installation instructions. Order yours today and unleash the power of a Magnuson Supercharger on your Hemi!

Features and Specifications

• 603 hp and 562 ft-lbs at 5.5 lbs of boost
• Custom FEAD system designed to retain the full functionality of the factory high mount alternator location for water protection
• Utilizes Eaton TVS Technology incorporating high helix, four lobe rotors for maximum supercharger efficiency across entire speed range.
• Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
• Designed to fit under the hood of all vehicles.
• Bolt-on anodized billet cartridge-style front drive allows for future belt line upgrades.
• High flow dual charge air cooler set-up with ¾" water inlet and outlet ports reduce coolant restriction, allowing maximum flow with extremely high cooling efficiency.
• CNC-machined ports for optimized airflow into engine cylinders.
• Vacuum bypass system with instantaneous boost response designed to unload supercharger at engine idle and part-throttle for improved fuel economy.
• Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
• Includes handheld tuner device, calibration, and detailed step by step instructions for a seamless installation experience.
• Includes PCM unlock
