Overview

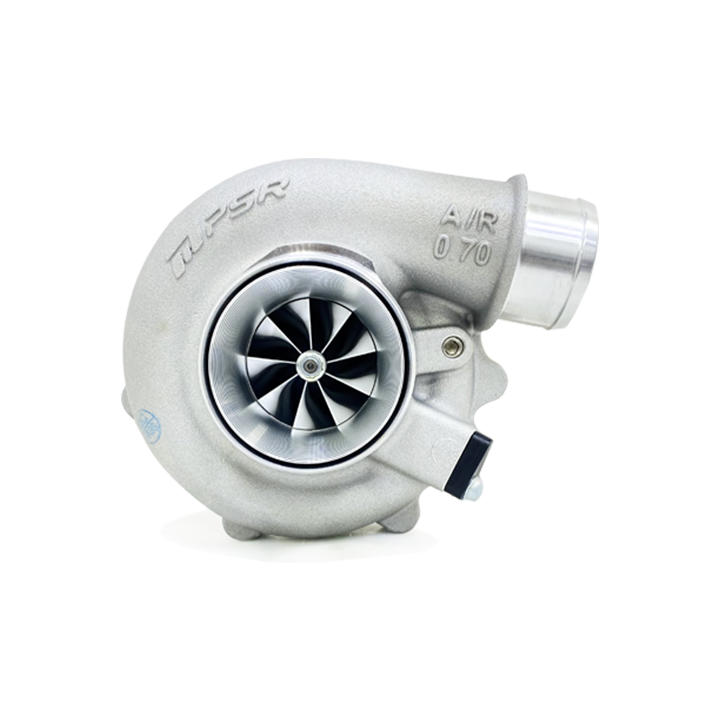

The PSR 5455G DBB Forward Turbocharger is a high-performance unit rated to support up to 660 horsepower. It features a dual ceramic ball bearing system for quicker spool-up and enhanced durability. The turbo is equipped with a 9-blade G-Aero billet compressor wheel designed with extended tapered tips for improved airflow and throttle response. On the turbine side, it uses a 9-blade Inconel 713C wheel for exceptional heat resistance and strength. The compressor housing is a T51R-modified forward rotation design, paired with a 0.83 A/R T3 open inlet turbine housing that includes a V-band outlet for easy exhaust connection and compact fitment. It also features integrated ports for oil and water cooling, along with an internally wastegated billet actuator for precise boost control, making it suitable for aggressive street and race applications.

Features

• Supports up to 660 HP – designed for high-performance street and racing builds

• Dual ceramic ball bearing system – improves spool time and durability

• 9-blade G-Aero billet compressor wheel – optimized with extended tapered tips for better airflow and throttle response

• 9-blade Inconel 713C turbine wheel – offers excellent heat resistance and durability

• T51R-modified compressor housing (forward rotation) – tuned for efficient airflow and quick spool

• 0.83 A/R T3 open inlet turbine housing – compact design with a V-band outlet for easy exhaust connection

• Integrated oil and water ports – ensures effective cooling and lubrication

• Internally wastegated with billet actuator – allows precise boost control up to ~12 psi

• 3-inch turbine outlet with V-band flange – standard size for reliable exhaust connection

• Pre-installed oil restrictor and standard T3 oil drain flange – simplifies installation and maintenance
