Overview

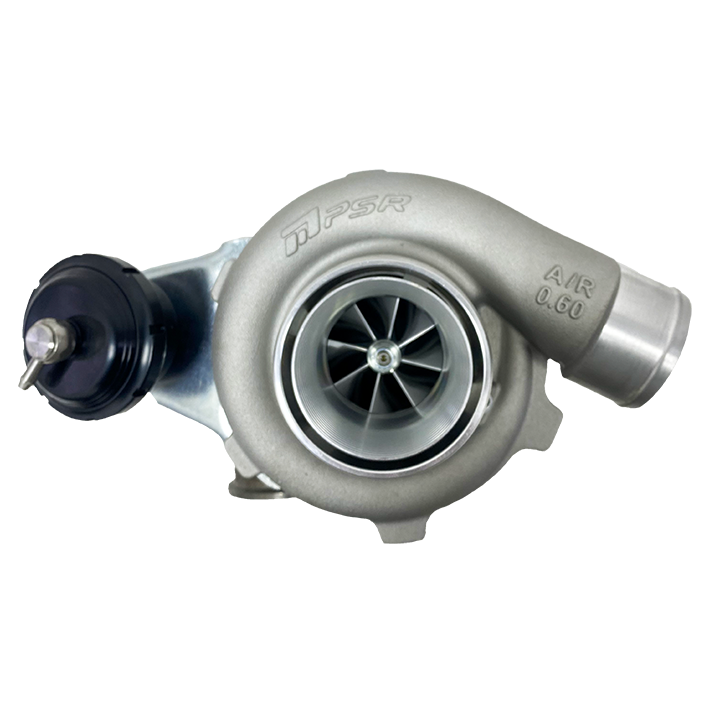

The PSR 2867 Gen2 DBB T51R MOD turbocharger is engineered for high-performance applications, supporting up to 550 horsepower. It features a dual ceramic ball bearing (DBB) system that ensures faster spool-up, reduced friction, and improved reliability. At its core is a Gen2 billet 8-blade compressor wheel with extended tapered tip technology for optimized airflow and efficiency. The 9-blade Inconel 713C turbine wheel is built to handle extreme heat while maintaining flow performance. This model includes a T51R-modified compressor housing, which enhances sound and flow dynamics. The turbine housing has a 0.72 A/R ratio with both V-band inlet and outlet, offering ease of installation and strong sealing. It also includes an integrated internal wastegate (IWG) with actuator, allowing for precise boost control. A built-in speed sensor port in the compressor cover enables real-time turbo speed monitoring, useful for tuning and diagnostics. The turbo is water-cooled and oil-lubricated, with standard –4AN oil feed and M14x1.5 water port fittings, and comes equipped with V-band flange kits for straightforward integration.
Features
- Supports up to 550 horsepower
- Dual ceramic ball bearing (DBB) system for faster spool-up and improved durability
- Gen2 8-blade billet compressor wheel with extended tapered tip technology for increased airflow efficiency
- 9-blade Inconel 713C turbine wheel for high temperature resistance and flow stability
- T51R-modified compressor housing for improved airflow dynamics and signature sound
- 0.72 A/R turbine housing with V-band inlet and V-band outlet for easy, leak-free installation
- Integrated internal wastegate (IWG) with included actuator for precise boost control
- Built-in speed sensor port for real-time monitoring and advanced tuning
- Water-cooled center housing with M14x1.5 water ports
- –4AN oil feed and standard T3 oil drain flange
- Includes V-band flange kit(s) for simplified installation
