Fuel Injected Engines:
- 1600 HP @ 50 PSI (Naturally Aspirated)
- 1400 HP at 80 PSI (Boosted)
Carbureted Engines:
- 1800 HP @ 7 PSI (Naturally Aspirated)
- 1700 HP @ 30 PSI (Boosted)
* Precise, consistent fuel delivery
* Self priming
* Pump element is 100% tool steel
* Body machined from billet aluminum
* All billet body pumps are 100% serviceable
* Breakaway coupling prevents pump / motor damage in the event of contamination
* For carbureted or injected engines
* -12 inlet and -10 outlet o-ring ports
* 5.5 lbs

Compatible Fluids:
- Gasoline
- Methanol
- Diesel
- Ethanol
- All racing fuels

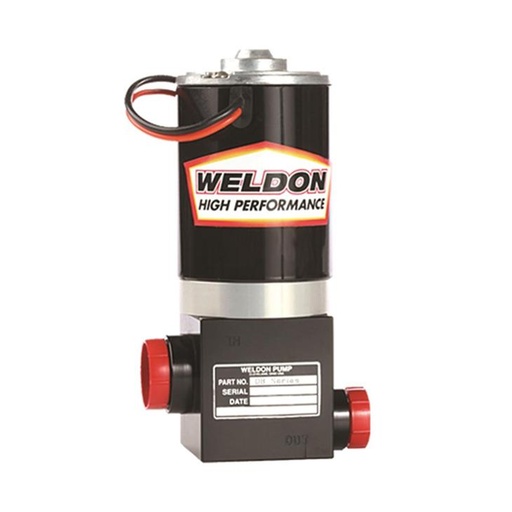

Part No: DB2015-A
Fuel Injected Engines:
- 1100 HP @ 50 PSI (Naturally Aspirated)
- 1000 HP at 80 PSI (Boosted)
Carbureted Engines:
- 1300 HP @ 7 PSI (Naturally Aspirated)
- 1100 HP @ 30 PSI (Boosted)

* Precise, consistent fuel delivery
* Self priming
* Pump element is 100% tool steel
* Body machined from billet aluminum
* All billet body pumps are 100% serviceable
* Breakaway coupling prevents pump / motor damage in the event of contamination
* For carbureted or injected engines.
* -12 inlet and -10 outlet o-ring ports
* 5.5 lbs

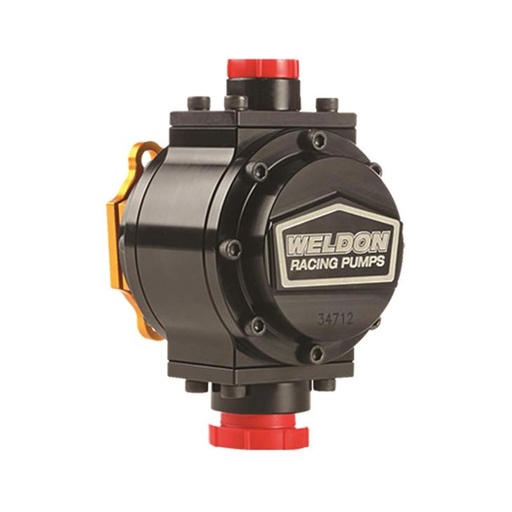

Brand: WELDON PUMP LLC
Part No: 34712
Flow Rate: 750 gph/2,839 lph
Fuel Pump Inlet Size: -12 AN
Fuel Pump Outlet Size: -12 AN
Quantity: Sold individually.

Features:
- Billet Aluminum housing.
- Precision ground shafts and gear sets.
- Multi-directional flange with 3 bolt mounting pattern.
- Compatible with the A2047 High Flow Regulator.
- Compatible with all fuels.
- Tested to ensure accurate performance.
- Rated flow at 12.5 gpm @ 4000 rpm
- Will support up to 3000 hp(methanol)

– 12 AN inlet and 10 AN outlet
– Supports 2000 hp @ 14 VDC EFI (1000 hp on Methanol) 2400 hp @ 16.5 VDC EFI (1200 hp on Methanol)
– 200-250 GPH / 0-80 PSI
Maximum Horsepower: 2000 hp @ 14 VDC EFI (1000 hp on Methanol) 2400 hp @ 16.5 VDC EFI (1200 hp on Methanol) GPH / PSI Range: 200-250 GPH / 0-80 PSI .

- All billet body pumps are 100% serviceable/repairable
- Self Priming Pump may be mounted above fuel cell Vertical or horizontal mount
- Breakaway coupling prevents pump/motor damage in the event of fuel contamination
- All internal components are 100% metallic No plastics or composite materials. Our internal pumping elements are made of high speed tool steel and bronze. This results in the longest lasting, highest quality, most durable pumps available.
- Body machined from billet aluminum
- For carbureted and injected engines
- Provides Consistent Performance with no fall-off in flow
- Precise fuel delivery
- Blades self-compensating for wear
- 6 lbs Current Fuels: Weldon Pumps offer the widest range of fuel compatibility. Gasoline – Methanol – Nitromethane – Diesel – Ethanol – All racing fuels Comments: Requires appropriate bypass regulator, a -10 return line is recommended.

Brand: Weldon Pump LLC

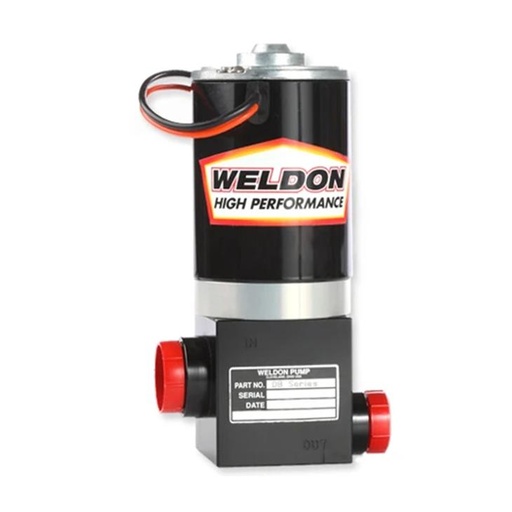

Part No: D2035-A
Deep Performance Part No: 001965
Fuel Pump Type: Electric external
Flow Rate: 220 gph/833 lph
Fuel Pressure (psi): 80 psi
Fuel Pump Voltage: 12v
Fuel Pump Inlet Size: -12 AN
Fuel Pump Outlet Size: -10 AN
Quantity: Sold individually.
Warranty: No

Weldon D2035-A electric fuel pumps offer flow rates to support 1,400 hp and higher. These high performance pumps provide precise and consistent fuel delivery. The D2035-A pumps work with both carbureted and fuel-injected engines.

Features and specs include:

* Self-priming
* Pump elements are 100 percent tool steel
* Bodies are machined from billet aluminum
* All billet body pumps are 100 percent serviceable
* Breakaway couplings prevent pump/motor damage in the event of contamination
* -12 inlet and -10 outlet O-ring ports
* Weighs 5.5 lbs.
* Fuel injected engines:
1,600 hp at 50 psi (naturally aspirated)
1,800 hp at 80 psi (boosted)
* Carbureted engines:
2,000 hp at 7 psi (naturally aspirated)
1,800 hp at 30 psi (boosted)
* Compatible with gasoline, methanol, diesel, ethanol, and all racing fu

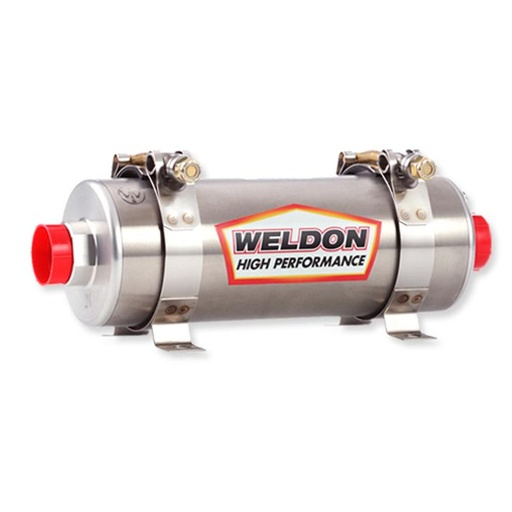

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: 1100-A
- Deep Performance Part Number: 001964
- Fuel Pump Type: Electric external
- Flow Rate: 155 gph/587 lph
- Fuel Pressure (psi): 100 psi
- Fuel Pump Voltage: 12 V
- Fuel Pump Inlet Size: -10 AN
- Fuel Pump Outlet Size: -10 AN
- Quantity: Sold individually.
- Warranty: No

Weldon 1100-A electric fuel pumps offer flow rates to support 880 to 1,400 hp. These high performance pumps are extremely quiet, while providing precise and consistent fuel delivery. The 1100-A pumps work with both carbureted and fuel-injected engines.

Features and specs include:
* Self-priming
* Continuous duty pump with extremely low current draw
* All internal pump components are 100 percent metallic
* Housings are made from 304 brushed stainless steel
* Mil-Spec clear anodized billet end caps
* -10 inlet and outlet O-ring ports
* Two stainless steel T-bolt style clamps included with each pump
* Weighs 6.0 lbs.
* Fuel injected engines:
1,400 hp at 50 psi (naturally aspirated)
1,000 hp at 80 psi (boosted)
* Carbureted engines:
1,600 hp at 7 psi (naturally aspirated)
1,500 hp at 30 psi (boosted)
*COMPATIBLE WITH GASOLINE ONLY.

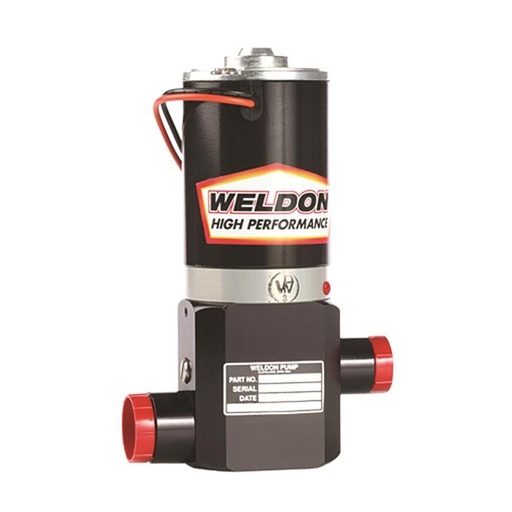

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: A2005-A
- Deep Performance Part Number: 001963
- Fuel Pump Type: Electric external
- Flow Rate: 120 gph/454 lph
- Fuel Pressure (psi): 80 psi
- Fuel Pump Voltage: 12 V
- Fuel Pump Inlet Size: -8 AN
- Fuel Pump Outlet Size: -8 AN
- Quantity: Sold individually.
- Warranty: No

Weldon A2005-A Electric Fuel Pumps:
- Weldon A2005-A electric fuel pumps are designed for use with carbureted and injected engines. They're self-priming and deliver a precise, consistent flow. These billet pumps are 100 percent serviceable, and their pump element is manufactured from tool steel.

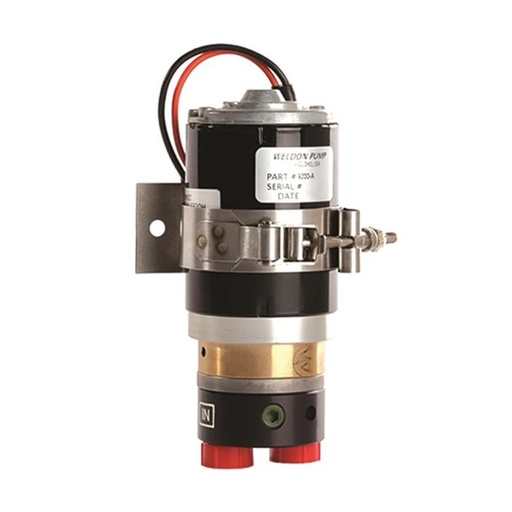

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: K9200-A
- Deep Performance Part Number: 001962
- Temperature Range (degrees F): 0 to 350 degrees F
- Flow Rate: 30 GPM
- Power Supply : 12v DC
- Quantity: Sold individually.
- Warranty: No

Notes:
-6 AN O-ring ports. Includes mounting clamp and thermostatic switch,

- Weldon 9000 Series Transfer Pumps
* Weldon 9000 Series fluid transfer pumps are completely rebuildable, self-priming, and have internal components made from 100 percent metal—not plastics or composite. The pumps also feature an internal relief valve to prevent any future system damage. Rated flow for oil is 30 gph at 300 degrees F; while the units draw only 5.5 amps.

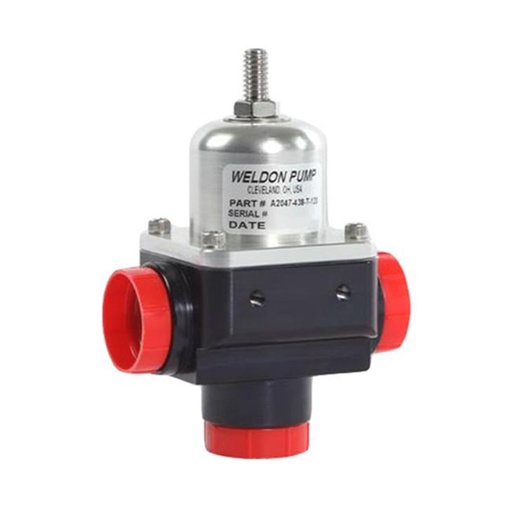

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: A2047
- Deep Performance Part Number: 001942
- Pressure Range (psi): 28-120 psi
- Regulator Inlet Size: -12 AN
- Regulator Outlet Size: -12 AN
- Return Fitting Size: -12 AN
- Regulator Material: Billet aluminum
- Regulator Finish: Black/Silver
- Quantity: Sold individually.
- Warranty: No

Features include:

* .438 in. bypass orifice
* PTFE diaphragm with O-ring seal ensures leak-free operation
* Flows up to 12 gpm
* 1/8 in. NPT gauge port
* 1/8 in. NPT manifold pressure reference port
* Adjustable between 28 to 120 psi
* -12 pressure and return ports
* Billet aircraft aluminum with Mil-Spec anodizing
* Compatible with gasoline, methanol, diesel, ethanol, all racing fuels

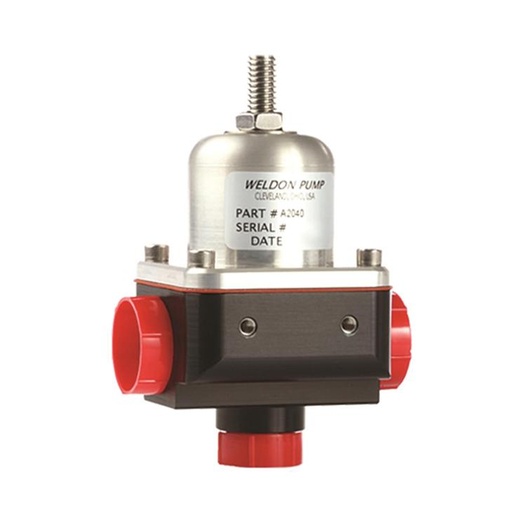

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: A2040
- Deep Performance Part Number: 001941
- Pressure Range (psi): 0-110 psi
- Regulator Inlet Size: -10 AN
- Regulator Outlet Size: -10 AN
- Return Fitting Size: -8 AN
- Regulator Material: Billet aluminum
- Regulator Finish: Black/Silver
- Quantity: Sold individually.
- Warranty: No

Features include:

* .281 in. bypass orifice
* Fluorosilicone diaphragm
* Flows up to 6 gpm
* 1/8 in. NPT gauge port
* 1/8 in. NPT manifold pressure reference port
* Fuel pressure increases on a 1:1 ratio with boost
* Two -10 AN pressure ports/-8 AN return port
* Billet aircraft aluminum with Mil-Spec anodizing
* Compatible with gasoline, methanol, diesel, ethanol, most racing fuels

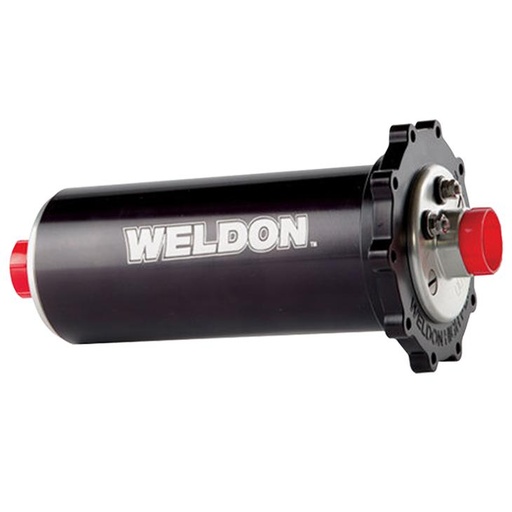

Features:
- A sleek, drop in replacement for any in-tank pump utilizing a 10-bolt pattern on a 4" bolt circle
- Can be mounted horizontal or vertically in fuel tank or cell
Fuel Injected Engines:
- 1400 HP at 50 PSI (Naturally Aspirated)
- 1000 HP at 80 PSI (Boosted)
Carbureted Engines:
- 1600 HP at 7 PSI (Naturally Aspirated)
- 1500 HP at 30 PSI (Boosted)
* Extremely quiet
* Precise, consistent fuel delivery
* Self priming
* Continuous duty pump with extremely low current draw
* All internal pump components are 100% metallic
* MIL-SPEC anodized billet aluminum flanged housing for added strength for extreme applications
* MIL-SPEC clear anodized billet end cap
* For carbureted or injected engines
* #10 inlet and outlet (7/8"-14 thread) o-ring ports
* Pump measures 7-5/8" from underneath the flange to the bottom
Compatible Fuels:
- Compatible with gasoline ONLY.
- NOT compatible with alcohol or ethanol based fuels.

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: 1400
- Deep Performance Part Number: 002370
- Fuel Pump Voltage Controller Material: Plastic
- Quantity: Sold individually.
- Warranty: No

Weldon 14000 Fuel Pump Controllers:

- Weldon 14000 fuel pump controllers allow you to adjust the volume of fuel flowing through the system, while maintaining preset fuel pressure. The 14000 pump controllers include everything needed, even the wiring kit. Switch between full and controlled speed with Weldon pump controllers.

Features:

* Controls pump speed with PWM, pulse width modulation, at over 12,000 Hz, meaning the current to the electric motor is interrupted over 12,000 times per second to reduce the rpm
* Over 64 times the switching frequency compared to our competition
* Decreases pump sound level
* Keeps fuel cooler
* Minimizes cavitation
* Prevents vapor lock

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: 34706
- Deep Performance Part Number: 002188
- Fuel Pump Type: Mechanical
- Flow Rate: 408 gph/1,544 lph
- Fuel Pressure (psi): 80 psi
- Fuel Pump Inlet Size: -12 AN
- Fuel Pump Outlet Size: -12 AN
- Quantity: Sold individually.
- Warranty: No

Weldon Mechanical Fuel Pumps:
- Weldon mechanical fuel pumps have flow rates to support fuel-injected engines over 2,400 hp. Compatible with gas, methanol, diesel, ethanol, and all racing fuels, the pumps feature billet aluminum housings, precision-ground shafts and gear sets, and multi-directional flanges with a 3-bolt mounting pattern. Weldon mechanical fuel pumps are lightweight and are well-matched to their A2047 high-flow regulator. Order the model with the flow rate desired for your vehicle.

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: A16000-A
- Deep Performance Part Number: 003558
- Fuel Pump Type: Electric external
- Flow Rate: 500 gph/1,893 lph
- Fuel Pressure (psi): 100 psi
- Fuel Pump Voltage: 12 V
- Fuel Pump Inlet Size: -16 AN
- Fuel Pump Outlet Size: -12 AN
- Quantity: Sold individually.
- Warranty: No

Weldon A16000-A Electric Fuel Pumps:
- Weldon A16000-A electric fuel pumps are ideal for EFI applications up to 4,000 hp on gas and 2,000+ hp on methanol where an approximate 7 gpm fuel pump is required. They're great for use in import drag racing, "Drag Week," or true street-type race cars. The self-priming pumps are compatible with all race fuels, and are intended for intermittent-duty use only. Features include: a billet aluminum, MIL-SPEC anodized housing; balance-loaded 10 vane steel pump element; and ultra-high efficient electric motor assembly.

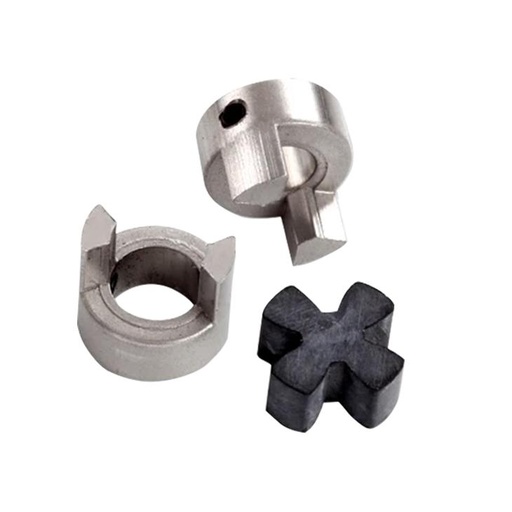

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: KC2015-25-35
- Deep Performance Part Number: 003070
- Quantity: Sold individually.
- Warranty: No

* Coupler repair kit for all billet bodied pumps excluding the A2005-A

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: WEQ1010SSN
- Deep Performance Part Number: 003047
- Filter Element Material: Stainless steel mesh
- Overall Length (in.): 5.50 in.
- Outside Diameter (in.): 2.375 in.
- Fuel Pump Inlet Size: -10AN
- Fuel Pump Outlet Size: -10AN
- Quantity: Sold individually.
- Warranty: No

Weldon billet fuel filters trap contaminants you don't want in your fuel. These assemblies feature Mil-Spec anodizing, along with port configurations and filter media to fit most any application.

Features of Weldon billet aluminum filter assemblies:

* Cellulous or stainless steel elements
* Choice of 10, 40, or 100 micron filters
* Multiple options for O-ring port sizes
* Over 60 sq. inches of filtering area
* Radiused end caps to improve fuel flow within filter
* Black/clear MIL-SPEC anodizing for a long lasting high-performance finish
* Minimal pressure drop

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: WEQ10100SSN
- Deep Performance Part Number: 003046
- Filter Element Material: Stainless steel mesh
- Smallest Particle Filtered:100 microns
- Overall Length (in.): 5.50 in.
- Outside Diameter (in.): 2.375 in.
- Fuel Pump Inlet Size: -10AN
- Fuel Pump Outlet Size: -10AN
- Quantity: Sold individually.
- Warranty: No

* Weldon Billet Fuel Filters
- Weldon billet fuel filters trap contaminants you don't want in your fuel. These assemblies feature Mil-Spec anodizing, along with port configurations and filter media to fit most any application.

Features of Weldon billet aluminum filter assemblies:

* Cellulous or stainless steel elements
* Choice of 10, 40, or 100 micron filters
* Multiple options for O-ring port sizes
* Over 60 sq. inches of filtering area
* Radiused end caps to improve fuel flow within filter
* Black/clear MIL-SPEC anodizing for a long lasting high-performance finish
* Minimal pressure drop

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: WEQ12100SSN
- Deep Performance Part Number: 004359
- Filter Element Material: Stainless steel mesh
- Smallest Particle Filtered:100 microns
- Overall Length (in.): 5.50 in.
- Outside Diameter (in.): 2.375 in.
- Fuel Pump Inlet Size: -12AN
- Fuel Pump Outlet Size: -12AN
- Quantity: Sold individually.
- Warranty: No

Weldon Billet Fuel Filters

Weldon billet fuel filters trap contaminants you don't want in your fuel. These assemblies feature Mil-Spec anodizing, along with port configurations and filter media to fit most any application.

Features of Weldon billet aluminum filter assemblies:

* Cellulous or stainless steel elements
* Choice of 10, 40, or 100 micron filters
* Multiple options for O-ring port sizes
* Over 60 sq. inches of filtering area
* Radiused end caps to improve fuel flow within filter
* Black/clear MIL-SPEC anodizing for a long lasting high-performance finish
* Minimal pressure drop
* Replacement filter elements available

- Brand: Weldon Pump LLC
- Manufacturer's Part Number: WEQ1210SSN
- Deep Performance Part Number: 004360
- Filter Element Material: Stainless steel mesh
- Smallest Particle Filtered:10 microns
- Overall Length (in.): 5.50 in. - Outside Diameter (in.): 2.375 in.
- Fuel Pump Inlet Size: -12AN
- Fuel Pump Outlet Size: -12AN
- Quantity: Sold individually.
- Warranty: No

* Weldon Billet Fuel Filters
- Weldon billet fuel filters trap contaminants you don't want in your fuel. These assemblies feature Mil-Spec anodizing, along with port configurations and filter media to fit most any application. Features of Weldon billet aluminum filter assemblies:

* Cellulous or stainless steel elements
* Choice of 10, 40, or 100 micron filters
* Multiple options for O-ring port sizes
* Over 60 sq. inches of filtering area
* Radiused end caps to improve fuel flow within filter
* Black/clear MIL-SPEC anodizing for a long lasting high-performance finish
* Minimal pressure drop
