PSR PRO98 DBB Turbo 2550HP STD A/R1.41 V-Band

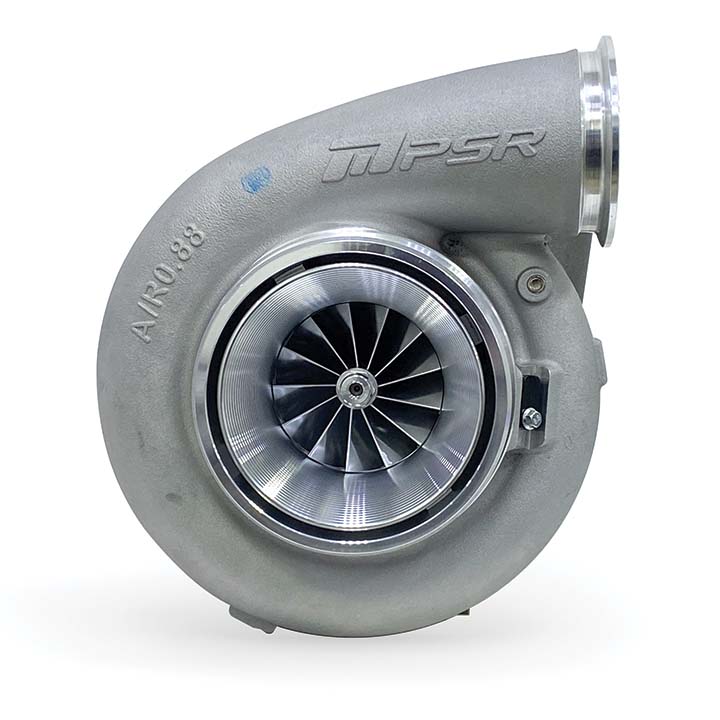

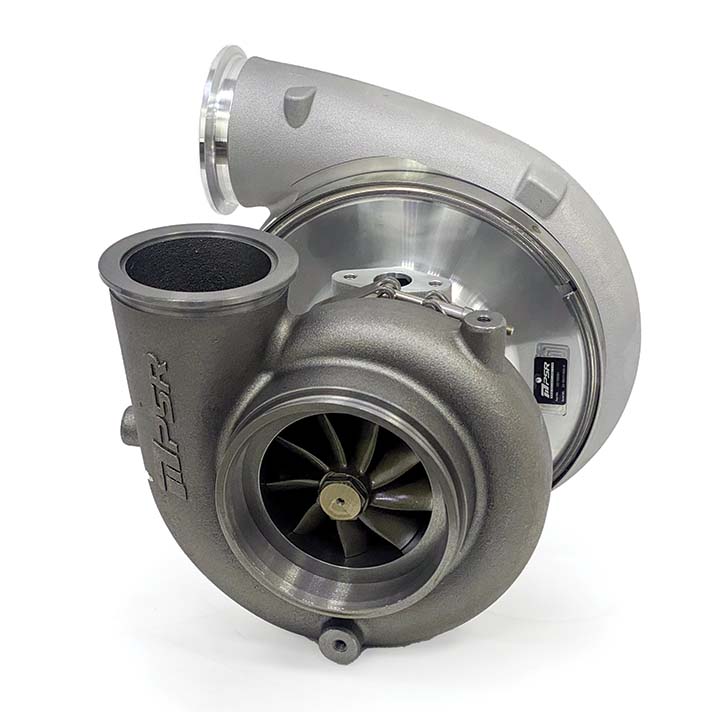

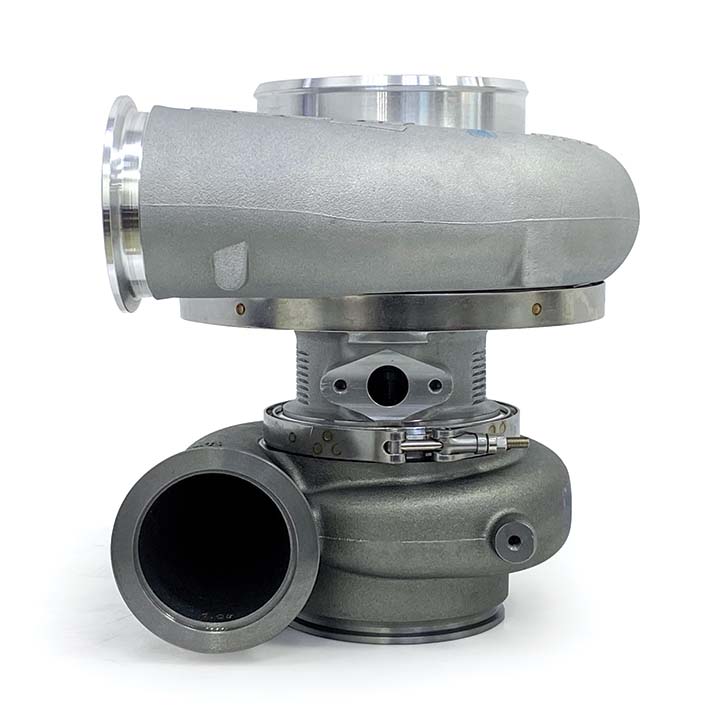

The PSR Logoed PRO98 DBB Turbo 2550HP STD A/R1.41 V-Band is a high-performance turbocharger supporting 2550 horsepower, featuring a dual ball bearing design, 1.41 A/R ratio, and a V-band connection

https://www.deepperformance.com/web/image/product.template/391733/image_1920?unique=8fb4b08
(0 review)

9,925.00 AED 9925.0 AED 9,925.00 AED VAT Excluded

9,925.00 AED VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: 2-3 Business Days

    Description

    • Compressor Wheel: 98.4*133.5*142.4mm
    • Turbine Wheel: 118*112mm
    • Compressor Inlet: 6” Hose
    • Compressor Outlet: 4” V-band
    • Compressor Housing A/R: 0.96
    • Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
    • Turbine Outlet: 5” V-Band
    • Turbine Housing A/R: 1.09/1.25/1.41
    • Oil Feed: See graph below(OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
    • Oil Drain: See graph below(OIL OUTLET)

    Features

    • Dual ceramic ball bearing system provides optimal turbo response &
      better durability by reducing the shaft-motion
    • 13 Blade G-Aero billet compressor wheel 98mm inducer produces up to 2550 hp
    • 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
    • Fin cooled aluminum center housing, lighter weight
    • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

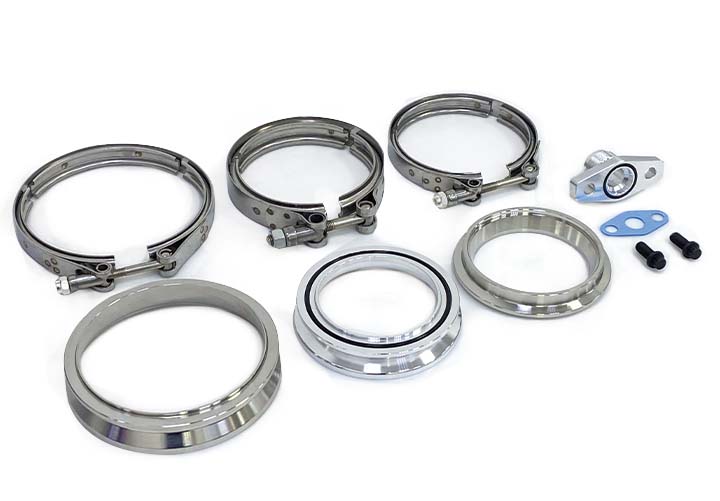

    • Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
    • Oil Feed Fitting needs to be bought separately, check the link if you need it
