Description
- Compressor Wheel: 66x82mm
- Turbine Wheel: 68x62mm
- Compressor Inlet: 4.0 inch Hose
- Compressor Outlet: 2.5 inch Hos
- Compressor Housing: T51R Mode
- Turbine Inlet: T4
- A/R: .85
- Turbine Outlet: 3 inch V-Band (3.55 inch OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14x1.5
Features

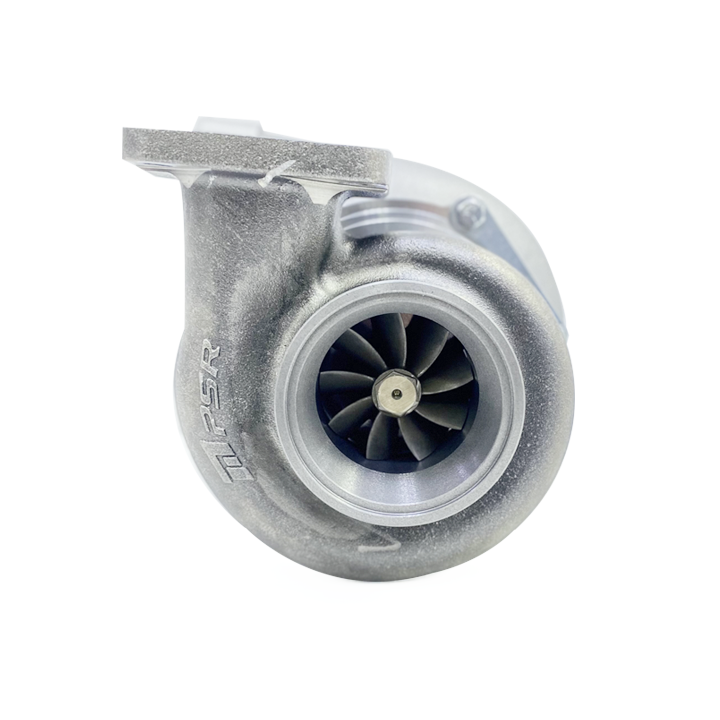

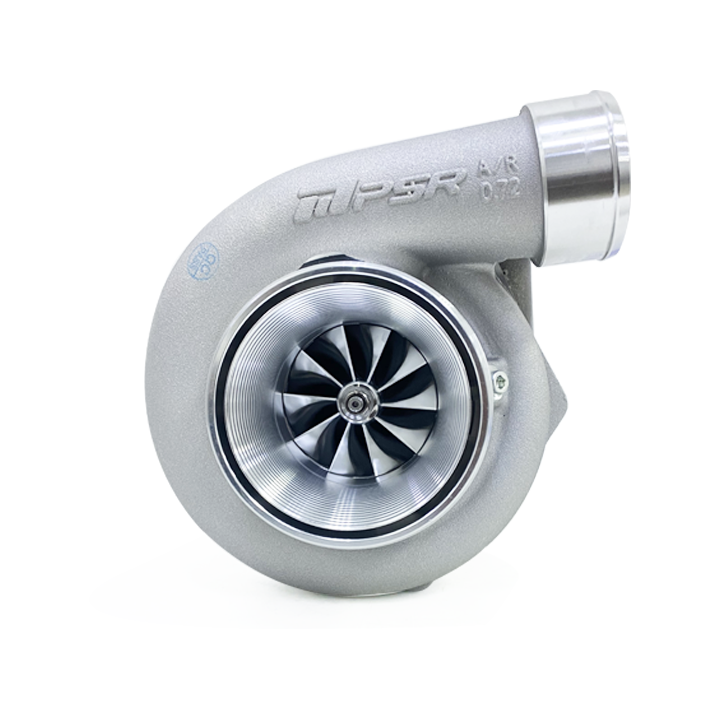

- GTX3582R GEN2
- Dual Ceramic Ball Bearing System
- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c Gen2 9 Blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP
- Horsepower rate: 450-900, Engine displacement range: 2.0L-4.5L
