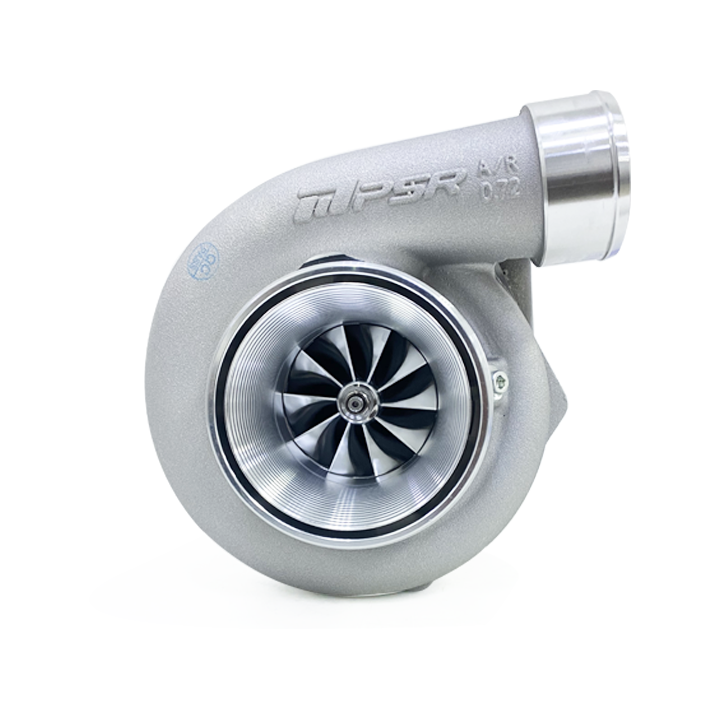

Description
- Compressor Wheel: 66*82mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4.0 Hose
- Compressor Outlet: 2.5 Hose
- Turbine Inlet: T4 0.82 A/R
- Turbine Outlet: 3″ V-Band (3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
Features
- Dual Ceramic Ball Bearing System
- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c Gen2 9 Blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP
- Horsepower rate: 450-900, Engine displacement range: 2.0L-4.5L
