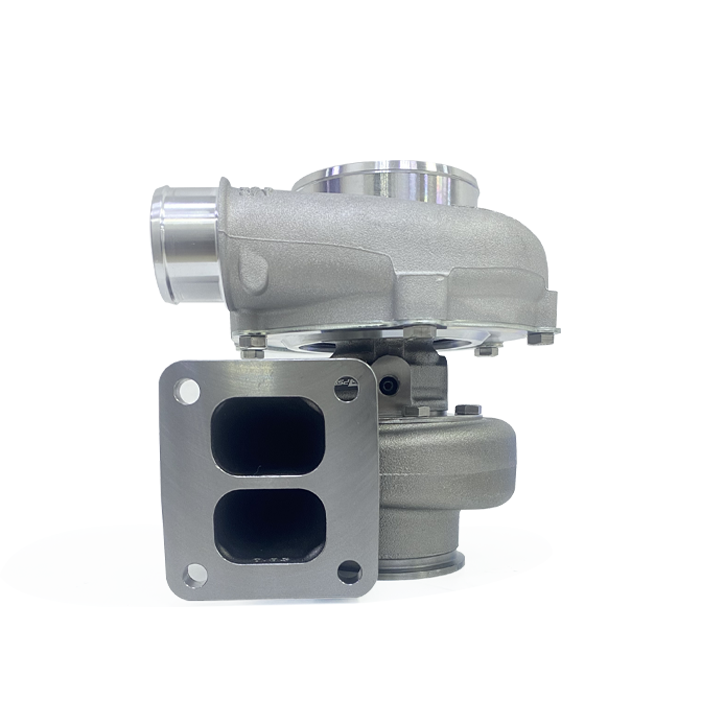

Description
- Compressor Wheel: 54*71mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: 0.85 A/R T4
- Turbine Outlet: 3″ V-Band (3.55″ OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
Features
- Dual Ceramic Ball Bearing System

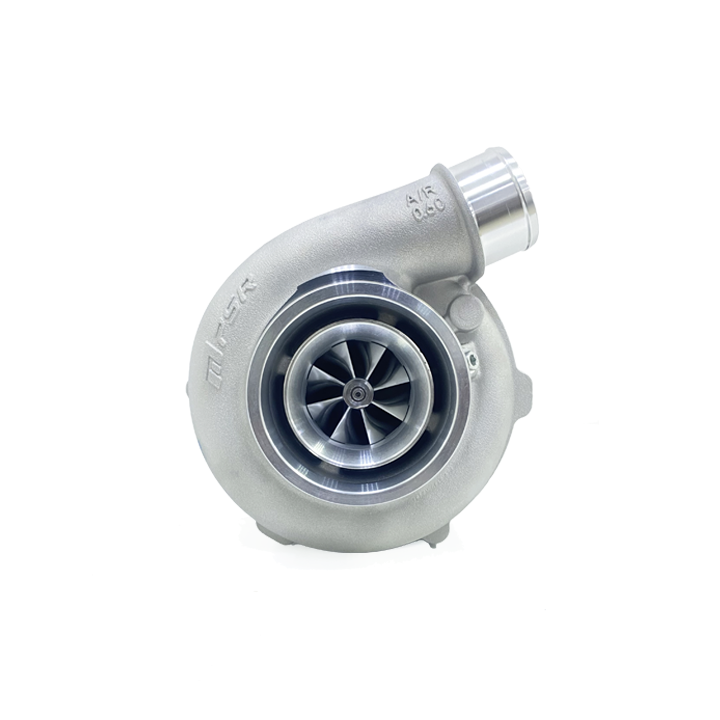

- 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel
- Multiple options for turbine housing

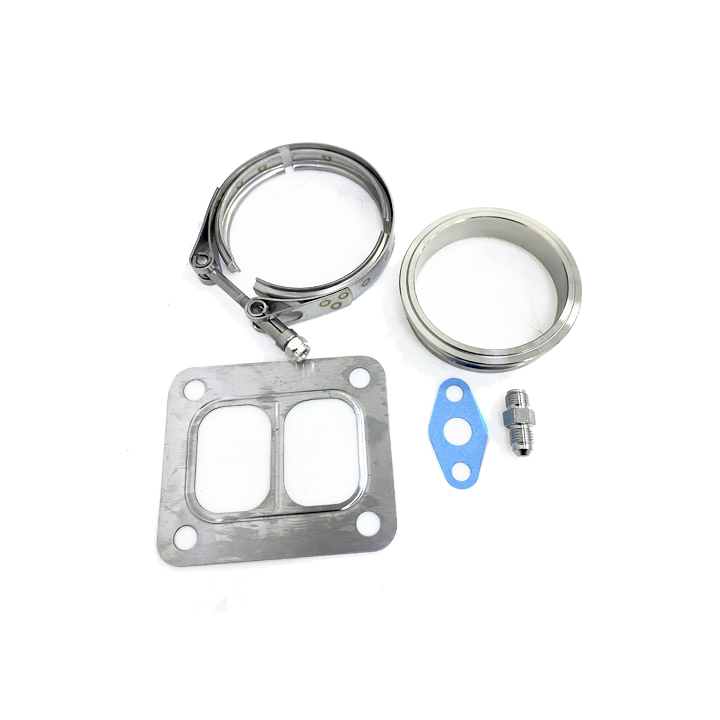

- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
