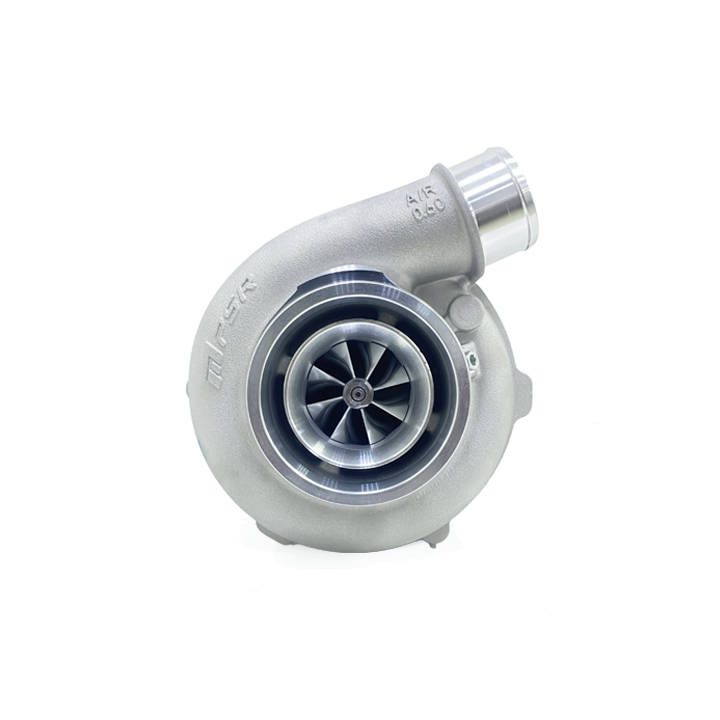

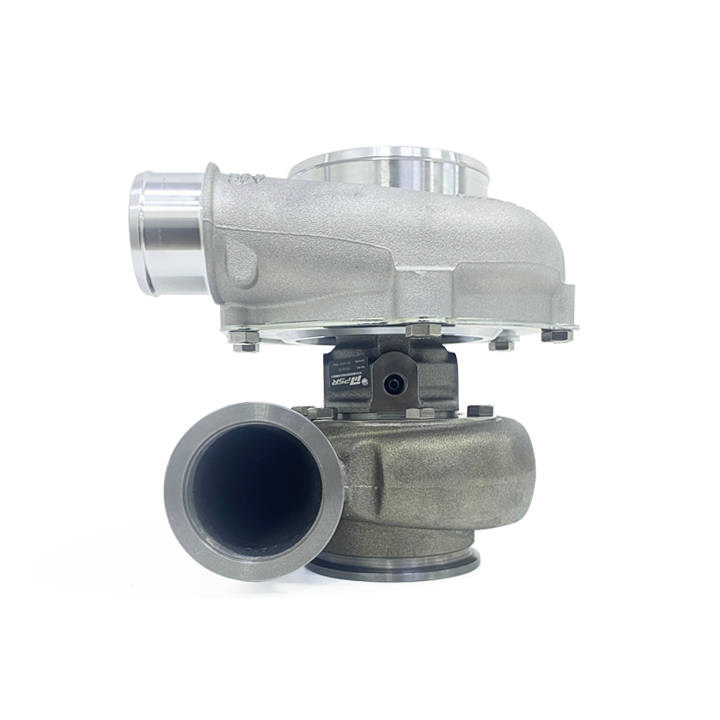

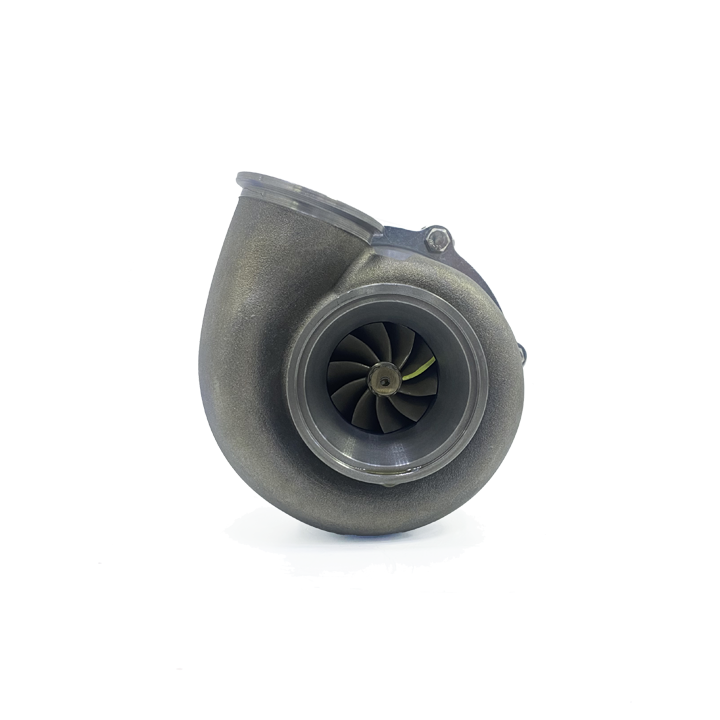

PSR Logoed PSR3071 Gen2 DBB Turbocharger 650HP STD V-Band 1.01A/R
The PSR Logoed PSR3071 Gen2 DBB Turbocharger 650HP STD V-Band 1.01A/R is a high-performance turbocharger supporting 650 horsepower, featuring a dual ball bearing design, standard compressor, and a 1.01 A/R ratio with a V-band connection
Description
- Compressor Wheel: 54*71mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: 1.01 A/R V-Band
- Turbine Outlet: 3″ V-Band (3.55″ OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
Features
- Dual Ceramic Ball Bearing System
- 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel
- Multiple options for turbine housing

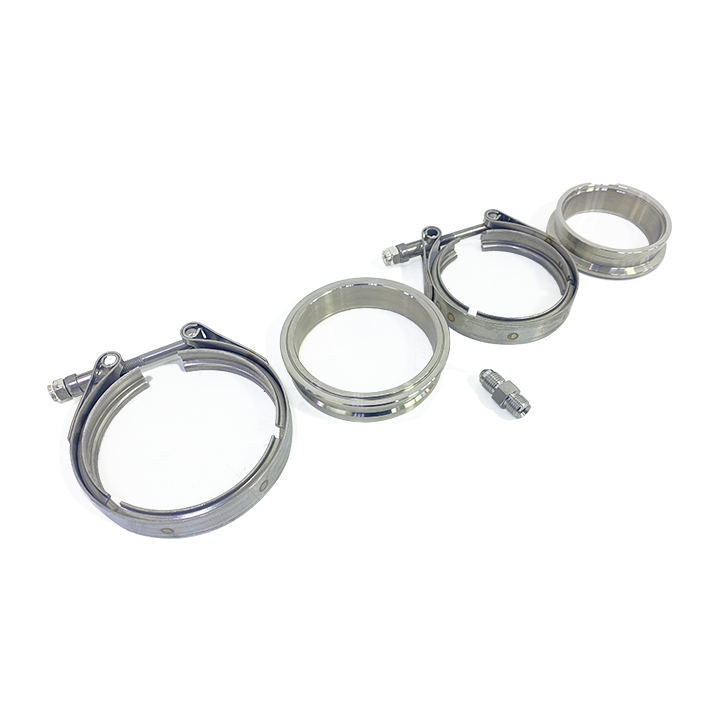

- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
