Description
- Compressor Wheel: 50*67mm
- Turbine Wheel: 54/47mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T25 or 2.5″ V-Band
- Turbine Outlet: 5 Bolt or 3″ V-Band (3.55 OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
Features
- Dual Ceramic Ball Bearing System
- 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 9-blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.64, 0.82 A/R dual V-BAND stainless steel, etc. turbine housings in option

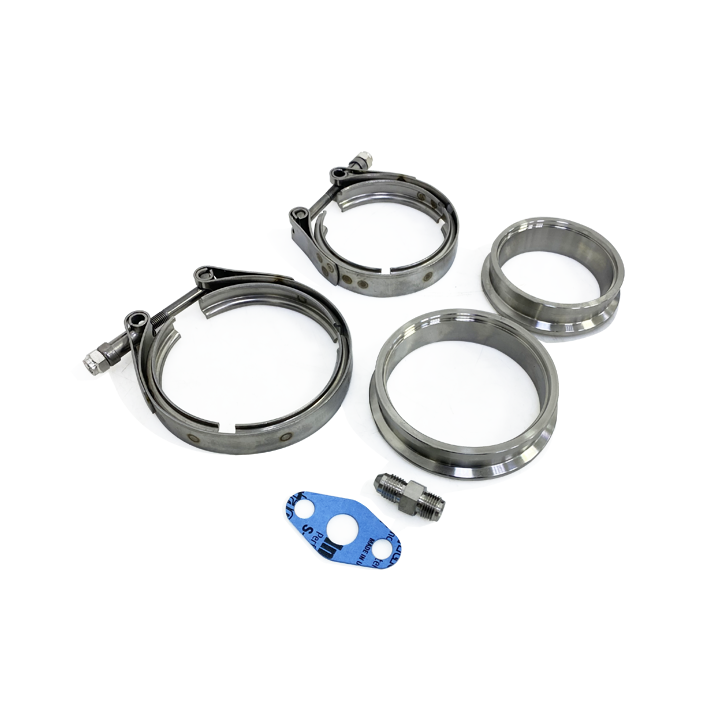

- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~45 lb/min, rated @ 550 FWHP
