DESCRIPTION

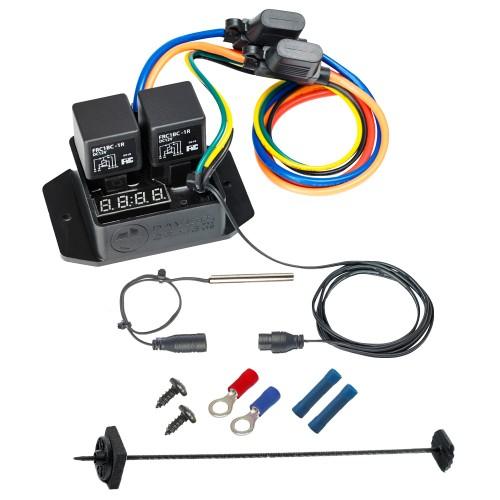

Our very own designed Digital Thermatic Fan Switch Kit can be used with our Thermatic Fans, EWP's and competitors Fans.

The sensor, a Temperature Probe (Air or Coolant Fitment) senses air temperature as it passes through the radiator with the sensor placed in the radiator fin section or the sensor can also be placed directly into the coolant system in combination with a Temperature Sensor Adaptor Kit

Sensor Wire length:

• 142cm in total (Wire from switch 112cm plus sensor connector 30cm)
• Post 15-Dec-2021 = 320cm total (Wire from switch 290cm plus sensor connector 30cm)

*The sensor wire has been increased to 320cm from the 15-Dec-2021, batch date 2021

The switch can run 1 or 2 fans and be used for 12 or 24 volt applications. It has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF) which can show Centigrade or Fahrenheit.

• Fan #1 will start once the temperature reaches the set temperature.
• Fan #2 (if applicable) will start operation 10 seconds after fan #1 starts.

The fan/s will operate until the temperature falls by 5°C below the set temperature.
