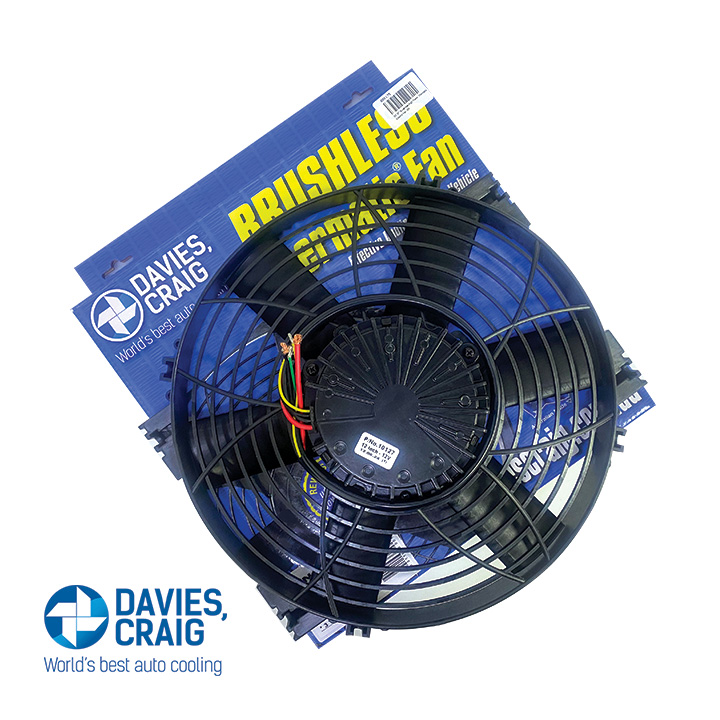

DC 12" Brushless High Power Thermatic Electric Fan 12V
0127
006175
Davies Craig Brushless Thermatic® Electric Fans offer outstanding performance for their size delivering up to a staggering 53% increase of air flow and 5 times the service life over the standard brushed models!
It is also 25% thinner than its brushed High Power motor equivalent!
Brushless Thermatic® Fans are suitable for use as:
Radiator cooling fans
Air conditioner condenser Fans
Transmission and engine Oil cooler fans
It provides, constant or variable air flow, increased fuel economy, improved air conditioning performance, cooler engine temperatures, low profile, high performance, increased engine power.
The IP68 rated motor with built in reversable motor rotation technology allows for either upstream (pusher) or downstream (puller) applications.
The flexibility of nine (9) different smart motor control modes; Full speed running, analogue speed control or pulse width modulation (PWM) speed control allowing for optimal control in any application.
These fan assemblies are set up for upstream / pusher applications from the factory.
For downstream applications, the fan blade must be removed and turned over and the wiring adjusted as per the instructions. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and prior to fastening the unit to the radiator.
