Overview

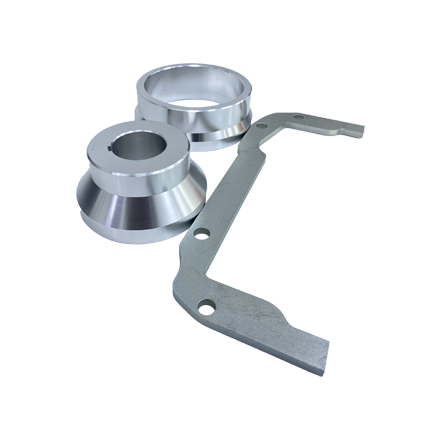

The LS Front and Rear Cover Oil Pan Alignment Tool Kit is a specialized tool set designed to ensure precise alignment of the front timing cover, rear main seal cover, and oil pan on GM LS engines including 5.3L, 5.7L, 6.0L, and 6.2L variants such as LS1, LS2, LS3, and LSA. Crafted from high-quality billet aluminum and steel, the kit ensures accurate centering of the front and rear seals to prevent leaks and premature wear. The oil pan alignment tool replicates the pan’s edge to properly position it relative to the front cover and engine block. This alignment is critical in LS engines where the oil pan acts as a structural component. Whether rebuilding an engine or replacing seals, this kit helps maintain integrity, reduce downtime, and improve long-term reliability.

Features

• Compatible with GM LS engines: 5.3L, 5.7L, 6.0L, 6.2L (LS1, LS2, LS3, LS6, LSA, etc.)

• Ensures precise alignment of front cover, rear cover, and oil pan

• Prevents front and rear main seal leaks by centering covers correctly

• Includes front cover tool, rear cover tool, and oil pan alignment tool

• Maintains oil pan alignment, crucial for LS engine structural integrity

• Made from durable billet aluminum and steel for long-lasting use

• Ideal for engine rebuilds, swaps, or seal replacements

• Increases accuracy and reduces the chance of rework or seal failure
