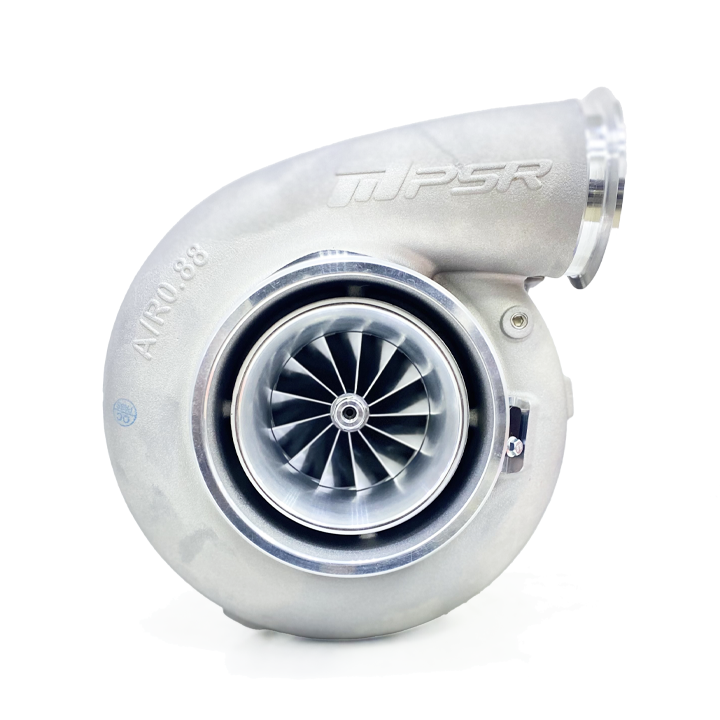

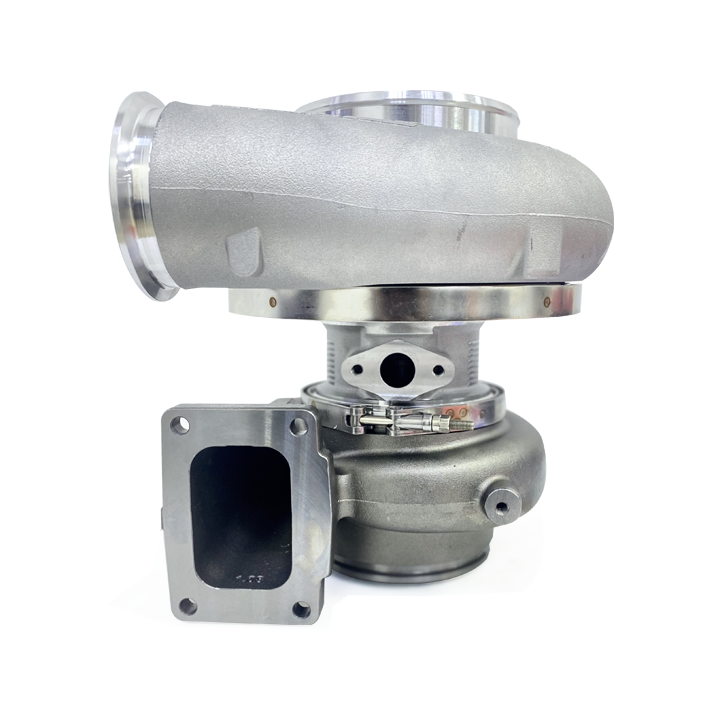

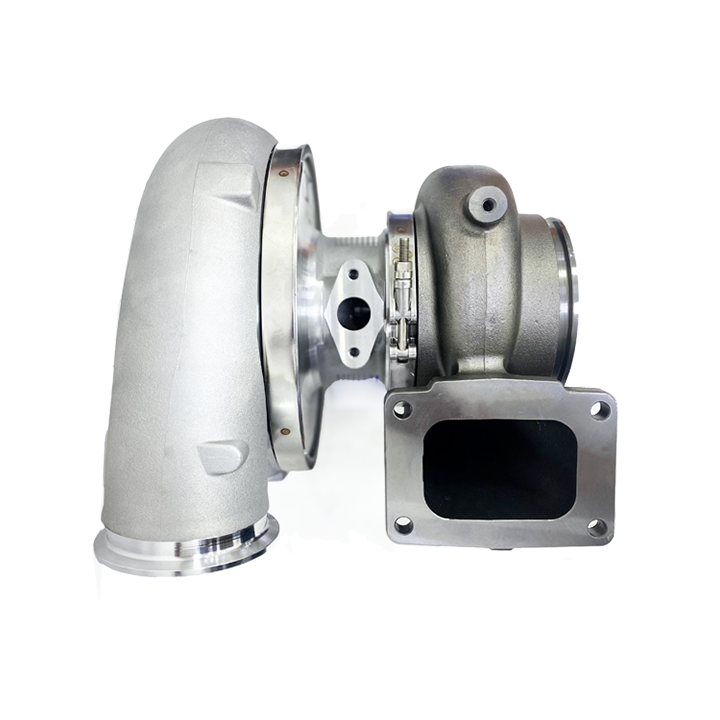

PSR 8894G Turbo DBB 0.88A/R Comp. Hsg. 1900HP T51R MOD 1.23A/R T6 Open V-Band
The PSR 8894G Turbo DBB 0.88 A/R Compressor Housing 1900HP T51R MOD 1.23 A/R T6 Open V-Band is a high-performance turbocharger with a 1900HP rating, dual ball bearing system, 0.88 A/R compressor housing, 1.23 A/R turbine, T6 flange, and open V-Band design
Description
- Compressor Wheel: 88.5*120*127.93mm, 13 Blade
- Turbine Wheel: 99*94mm
- Compressor Inlet: 6” Hose
- Compressor Outlet: 4” V-band
- Compressor Housing A/R: 0.88
- Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
- Turbine Outlet: 5” V-Band
- Turbine Housing A/R: 1.08/1.23
- Oil Feed: See graph below(OIL INLET)
- Oil Drain: See graph below(OIL OUTLET)
Features
- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 13 Blade PTG-Aero billet compressor wheel 88mm inducer and 120mm exducer produces up to 1900 hp

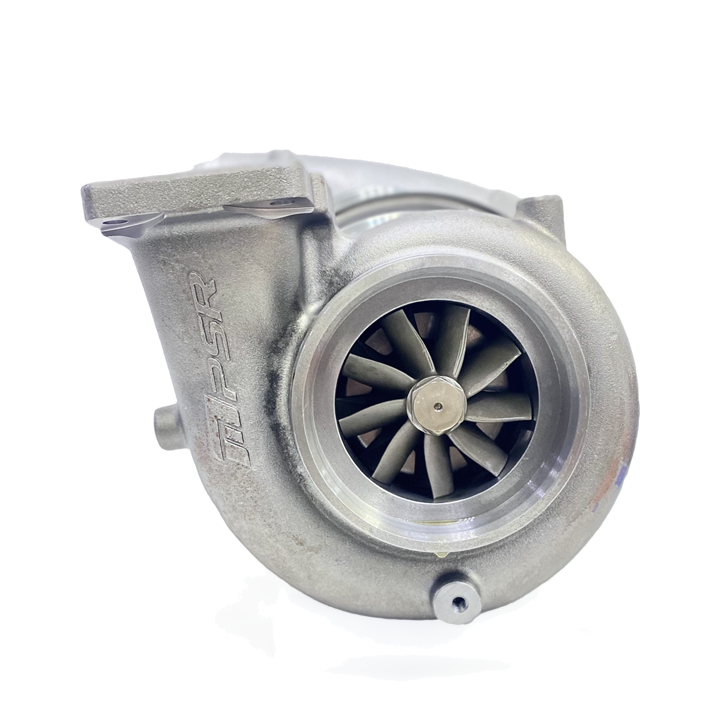

- 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
- Fin-cooled aluminum center housing, lighter weight
- Anti-surge ported-shroud compressor inlet, cover integrated with the speed sensor port

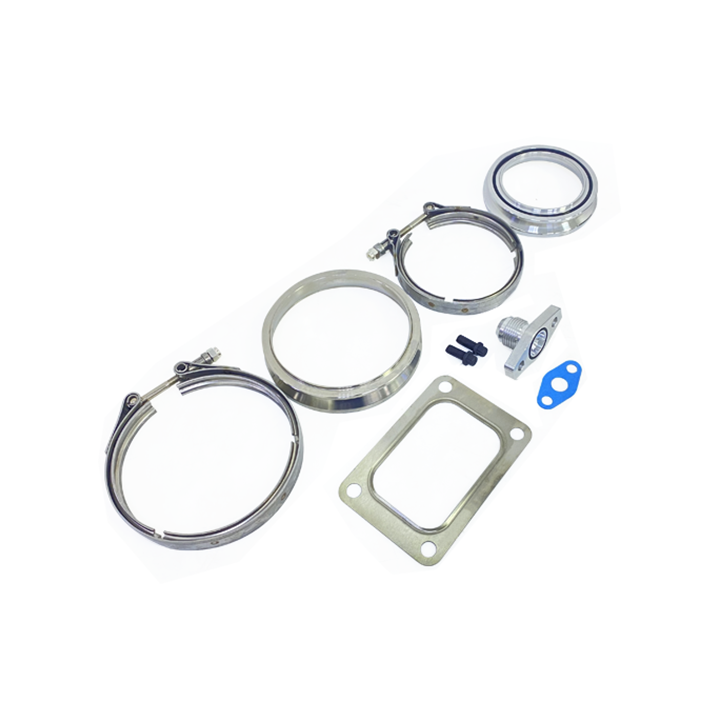

- Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting needs to be bought separately
