PSR 8894G Turbo DBB 0.88A/R Comp. Hsg. 1900HP STD 1.23A/R T6 Open V-Band
The PSR 8894G Turbo DBB 0.88 A/R Compressor Housing 1900HP STD 1.23 A/R T6 Open V-Band is a high-performance turbocharger with a 1900HP rating, dual ball bearing system, 0.88 A/R compressor housing, 1.23 A/R turbine, T6 flange, and open V-Band design
Description
- Compressor Wheel: 88.5*120*127.93mm, 13 Blade
- Turbine Wheel: 99*94mm
- Compressor Inlet: 6” Hose
- Compressor Outlet: 4” V-band
- Compressor Housing A/R: 0.88
- Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
- Turbine Outlet: 5” V-Band
- Turbine Housing A/R: 1.08/1.23
- Oil Feed: See graph below(OIL INLET)
- Oil Drain: See graph below(OIL OUTLET)
Features
Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
13 Blade PTG-Aero billet compressor wheel 88mm inducer and 120mm exducer produces up to 1900 hp
9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
Fin-cooled aluminum center housing, lighter weight
Anti-surge ported-shroud compressor inlet, cover integrated with the speed sensor port

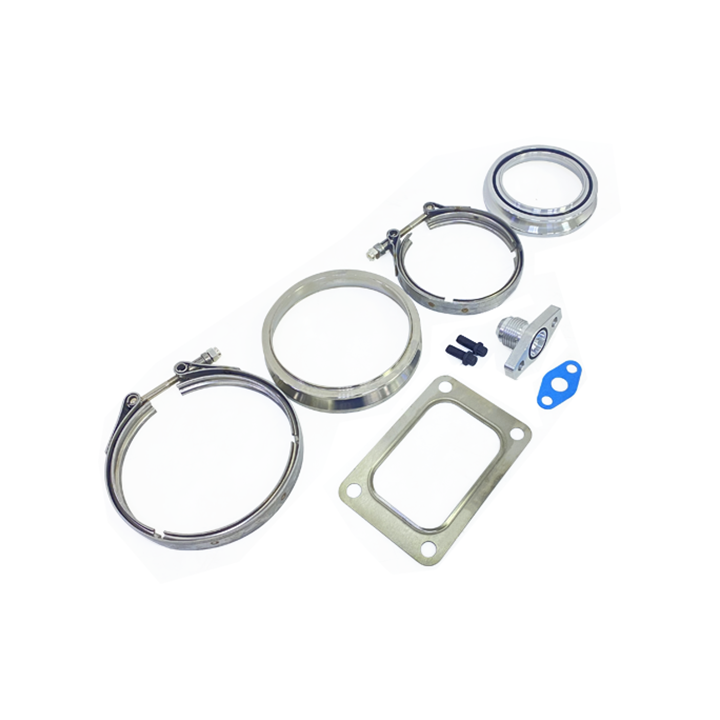

Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting needs to be bought separately, check the link if you need
