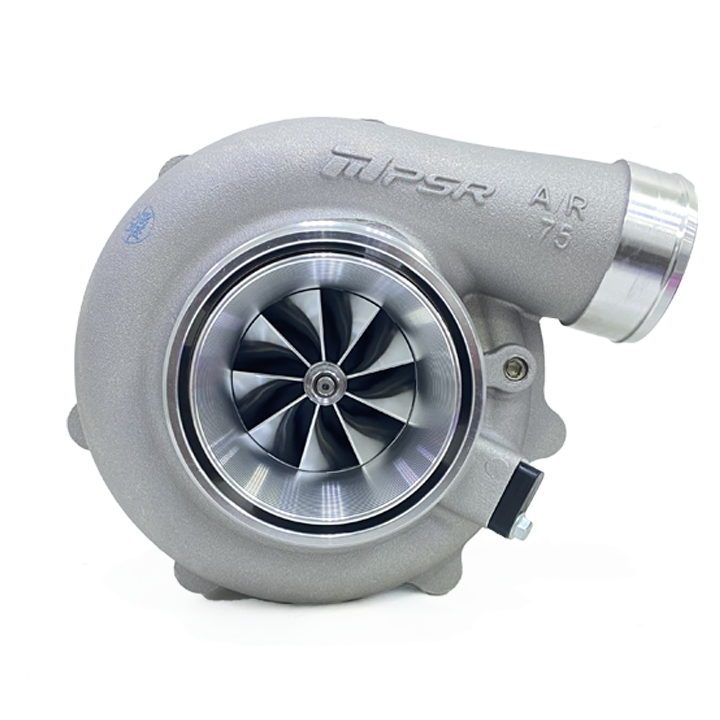

Description
- Compressor Wheel: 76.6*109.2mm
- Turbine Wheel: 89*81.6mm
- Compressor Inlet: 5″ Hose
- Compressor Outlet: 3″ V-Band
- Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
- Water Ports: -6AN
- Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
Features
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 13 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Water fittings included with the super core
- 8 Options in Turbine Housing
- HP rated at 1500HP at flywheel
- Oil Feed Fitting needs to be bought separately, check the link if you need it.
