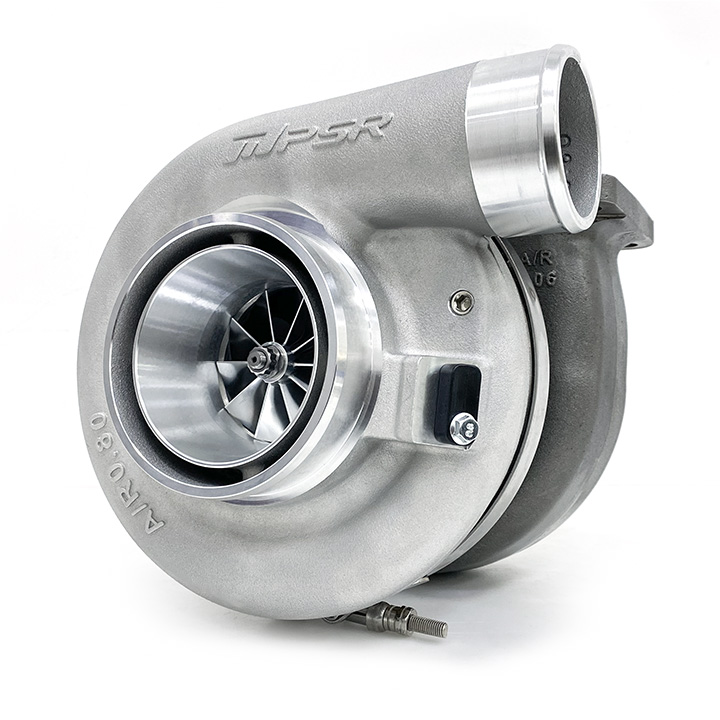

Description
- Compressor Wheel: 71*88mm
- Turbine Wheel: 77*70mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2.5″ Hose
- Turbine Inlet: V-band or T4 divided
- Turbine Outlet: 3.5”or 4″ V-band (see details after housing selection)
- Water Ports: -6AN
- Oil Feed(excl’): Flange Required(Recommended size: -4AN Std T4 Flange )
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
- T4(Divided) 0.95 A/R
Features
- Dual ceramic ball bearing with steel cage provides optimal turbo response &
better durability by reducing the shaft-motion - 71mm inducer 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Water fittings included with the super core
- 3 Options in Turbine Housing
- Suitable engine size: 2.0-6.0L
- HP rated at 1150HP at the flywheel
