Overview

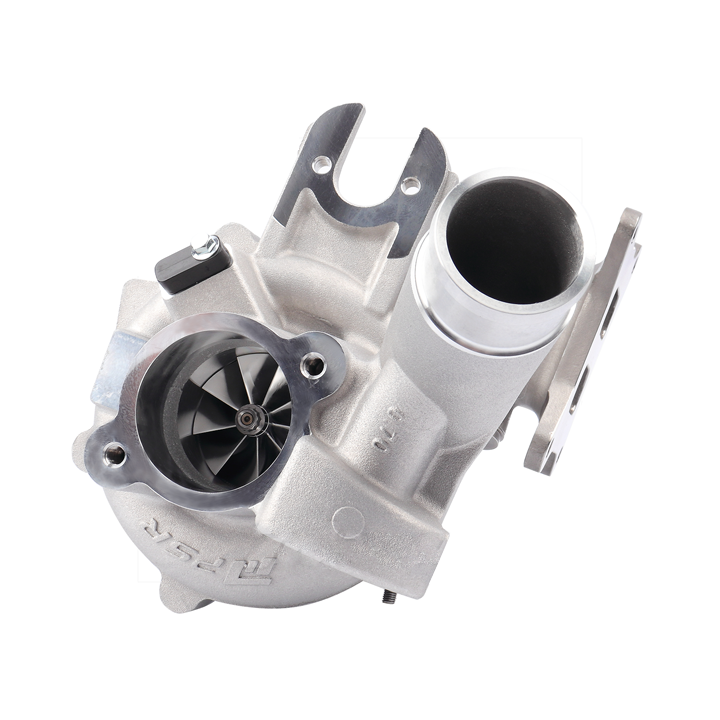

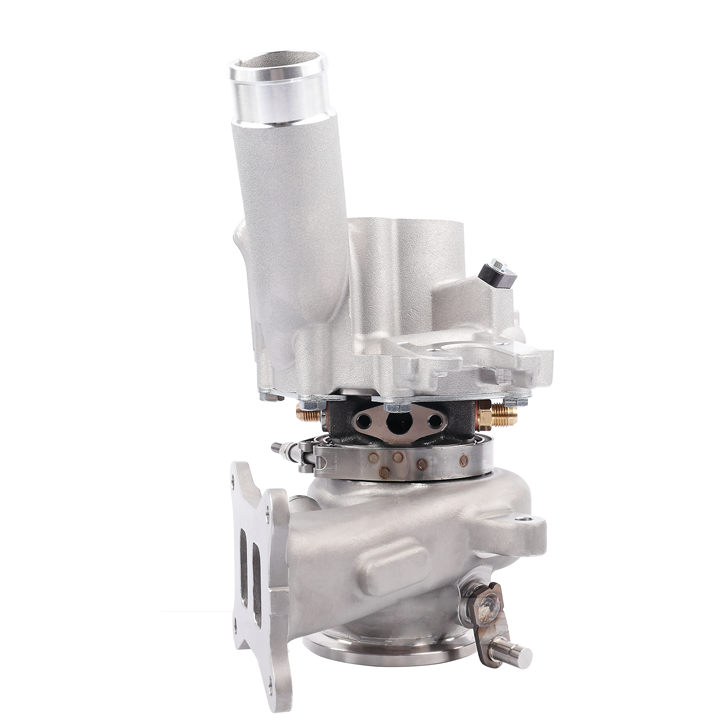

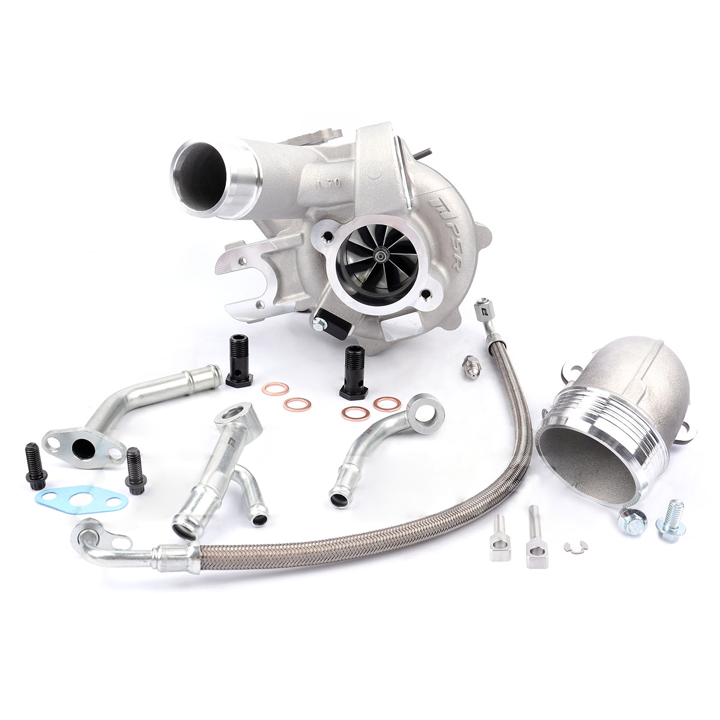

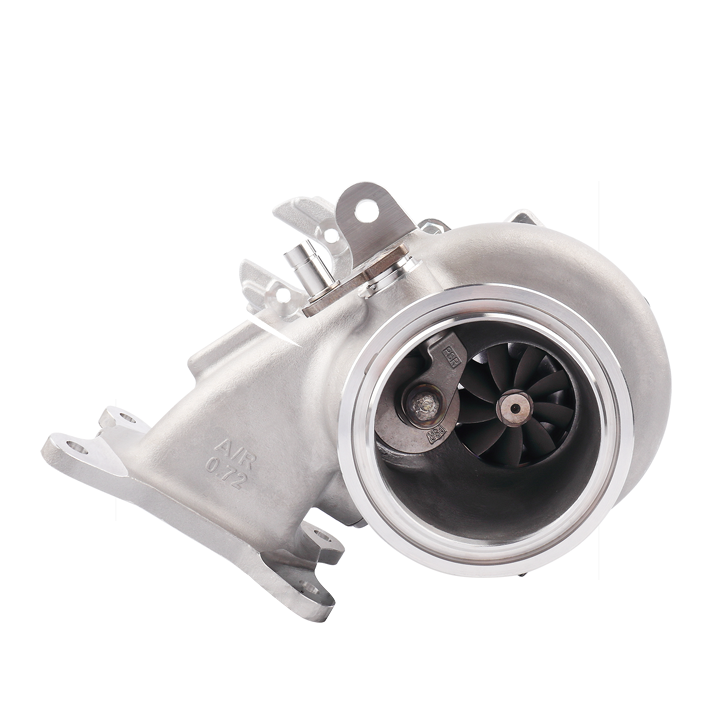

This high‑performance turbo features a dual ceramic ball bearing system, which significantly reduces shaft movement and friction, markedly improving spool response and long‑term durability. The compressor side is upgraded with a 9‑blade G‑Aero billet wheel that uses Extended Tapered‑Tip technology for enhanced airflow and efficiency, while the turbine side utilizes a 9‑blade G‑Aero Inconel 713C wheel built to withstand high exhaust temperatures and high boost demands. The compressor inlet includes an anti‑surge ported‑shroud design to prevent compressor surge under heavy flow, and it features a built‑in speed‑sensor port for better monitoring. It is internally waste‑gated and paired with a billet actuator (typically set around 12–14 psi), allowing precise boost control. With wheel sizes of approximately 54 × 67 mm on the compressor and 54 × 49 mm on the turbine, and various turbine housing options (e.g., A/R .49, .72, .92), it is engineered to support power levels up to around 600 BHP in suitable setups.
Features
Dual ceramic ball bearing system
- Reduces friction and shaft movement
- Improves spool response and durability
9-blade G-Aero billet compressor wheel
- Features Extended Tapered Tip technology
- Enhances airflow and efficiency
9-blade G-Aero Inconel 713C turbine wheel
- Built for high exhaust temperatures
- Maintains strength under high-boost applications
Anti-surge ported-shroud compressor inlet
- Prevents compressor surge at high flow rates
- Built-in speed sensor port for advanced monitoring
Internally wastegated
- Paired with billet actuator (typically set to 12–14 psi)
- Provides precise boost control
Wheel sizing
- Compressor: approx. 54 × 67 mm
- Turbine: approx. 54 × 49 mm
Multiple turbine housing A/R options
- Available in .49, .72, and .92 A/R configurations
Estimated power support
- Capable of supporting up to 600 BHP in properly tuned setups
